Diagnosis Procedure

  1. CHECK ENGINE START

    Turn ignition switch OFF, and restart engine.

    Is engine running?

    Yes or No

    Yes ( With CONSULT): GO TO 2.

    Yes ( Without CONSULT): GO TO  3.

    No: GO TO  4.

  2. CHECK OVERALL FUNCTION

    With CONSULT

    1. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT.
    2. Make sure that each circuit produces a momentary engine speed drop.

      OK or NG

      OK: INSPECTION END

      NG: GO TO  10.

  3. CHECK OVERALL FUNCTION

    Without CONSULT

    1. Let engine idle.
    2. Read the voltage signal between ECM terminals 17, 18, 21, 22 and ground with an oscilloscope.
    3. Verify that the oscilloscope screen shows the signal wave as shown below.
      NOTE: The pulse cycle changes depending on rpm at idle.
      Fig 1: Identifying Waveform
      G08275755Courtesy of NISSAN NORTH AMERICA, INC.

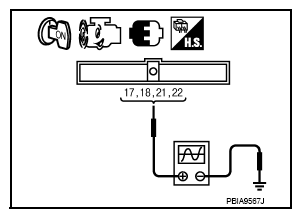

      Fig 2: Checking Ignition Signal
      G08275756Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK: INSPECTION END

      NG: GO TO  10.

  4. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
    2. Check voltage between ECM terminal 105 and ground with CONSULT or tester.

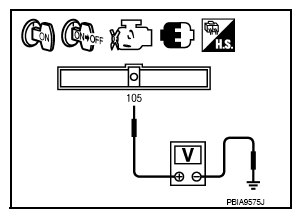

      Fig 3: Checking Ignition Coil Power Supply Circuit-I
      G08275757Courtesy of NISSAN NORTH AMERICA, INC.

      Voltage: Battery voltage

      OK or NG

      OK: GO TO 5.

      NG: Proceed to POWER SUPPLY AND GROUND CIRCUIT .

  5. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
    1. Turn ignition switch OFF.
    2. Disconnect condenser-2 (1) harness connector.

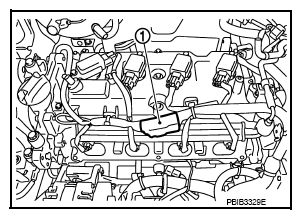

      Fig 4: Identifying Condenser-2 Harness Connector
      G08275758Courtesy of NISSAN NORTH AMERICA, INC.
    3. Turn ignition switch ON.
    4. Check voltage between condenser-2 terminal 1 and ground with CONSULT or tester.

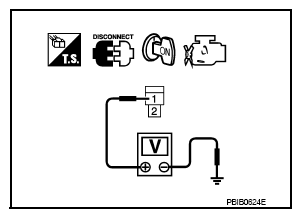

      Fig 5: Checking Ignition Coil Power Supply Circuit-II
      G08275759Courtesy of NISSAN NORTH AMERICA, INC.

      Voltage: Battery voltage

      OK or NG

      OK: GO TO  8.

      NG: GO TO 6.

  6. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
    1. Turn ignition switch OFF.
    2. Disconnect IPDM E/R harness connector E43.
    3. Check harness continuity between IPDM E/R terminal 3 and condenser-2 terminal 1.

      Refer to Wiring Diagram  .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

      OK or NG

      OK: Proceed to POWER SUPPLY AND GROUND CIRCUIT .

      NG: GO TO 7.

  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E8, F8
    • Harness for open or short between IPDM E/R and condenser-2

      : Repair open circuit or short to ground or short to power in harness or connectors.

  8. CHECK CONDENSER-2 GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between condenser-2 terminal 2 and ground.

      Refer to Wiring Diagram  .

      Continuity should exist.

    3. Also check harness for short to power.

      OK or NG

      OK: GO TO 9.

      NG: Repair open circuit or short to power in harness or connectors.

  9. CHECK CONDENSER-2

    Refer to "COMPONENT INSPECTION "

    OK or NG

    OK: GO TO 10.

    NG: Replace condenser-2.

  10. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV
    1. Turn ignition switch OFF.
    2. Reconnect all harness connectors disconnected.
    3. Disconnect ignition coil (1) harness connector.

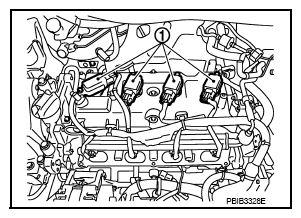

      Fig 6: Identifying Ignition Coil Connectors
      G08275760Courtesy of NISSAN NORTH AMERICA, INC.
    4. Turn ignition switch ON.
    5. Check voltage between ignition coil terminal 3 and ground with CONSULT or tester.

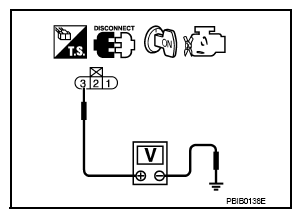

      Fig 7: Checking Ignition Coil Power Supply Circuit-IV
      G08275761Courtesy of NISSAN NORTH AMERICA, INC.

      Voltage: Battery voltage

      OK or NG

      OK: GO TO  12.

      NG: GO TO 11.

  11. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connector F8
    • Harness for open or short between ignition coil and harness connector F8

      : Repair or replace harness or connectors.

  12. CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between ignition coil terminal 2 and ground.

      Refer to Wiring Diagram  .

      Continuity should exist.

    3. Also check harness for short to power.

      OK or NG

      OK: GO TO 13.

      NG: Repair open circuit or short to power in harness or connectors.

  13. CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminals 17, 18, 21, 22 and ignition coil terminal 1.

      Refer to Wiring Diagram  .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

      OK or NG

      OK: GO TO 14.

      NG: Repair open circuit or short to ground or short to power in harness or connectors.

  14. CHECK IGNITION COIL WITH POWER TRANSISTOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 15.

    NG: Replace ignition coil with power transistor. Refer to "COMPONENT ".

  15. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    : INSPECTION END
