Ignition Timing

Any of following two methods may be used.

Method A

1. Attach timing light to loop wire (1) as shown below.

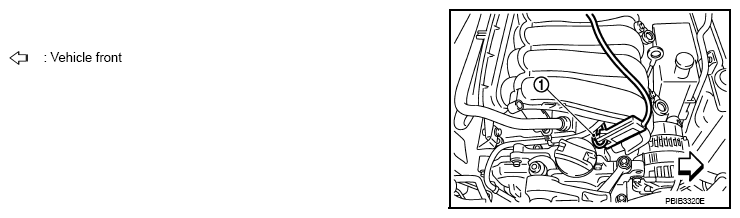

   Fig 1: Identifying Loop Wire

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.

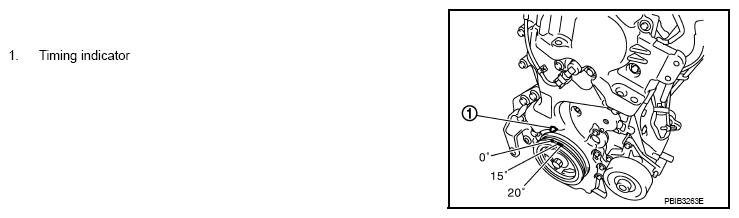

   Fig 2: Identifying Timing Marks

   Courtesy of NISSAN NORTH AMERICA, INC.

Method B

1. Remove No. 4 ignition coil (1).

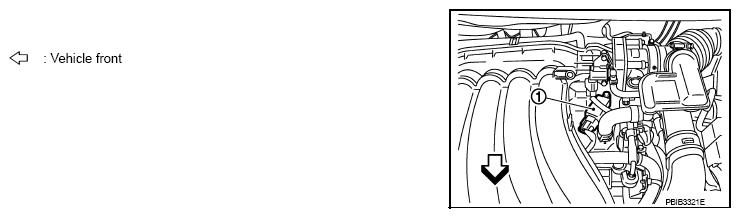

   Fig 3: Identifying No. 4 Ignition Coil

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Connect No. 4 ignition coil (1) and No. 4 spark plug with suitable high-tension wire (A) as shown below, and attach timing light clamp (B) to this wire.

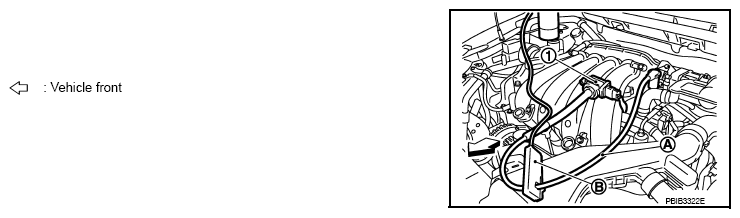

   Fig 4: Identifying No. 4 Ignition Coil, Timing Light Clamp & High-Tension Wire

   Courtesy of NISSAN NORTH AMERICA, INC.

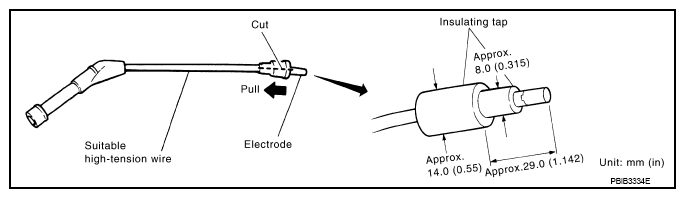

   Fig 5: Identifying High-Tension Wire & Electrode Dimensions

   Courtesy of NISSAN NORTH AMERICA, INC.
3. Check ignition timing.

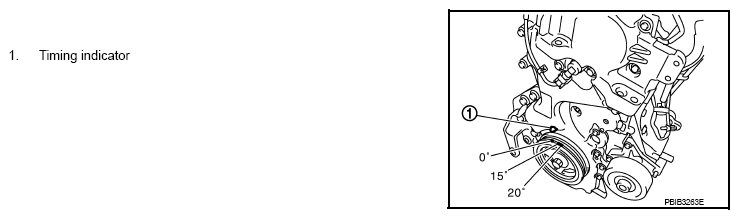

   Fig 6: Identifying Timing Marks

   Courtesy of NISSAN NORTH AMERICA, INC.
