Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector (1), which is located under LH dash panel.

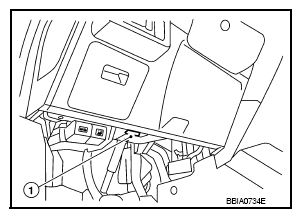

Fig 1: Locating Data Link Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this article, sample screens are shown below.)

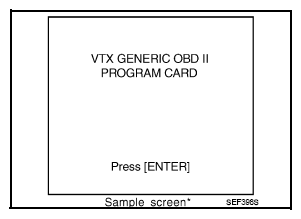

Fig 2: GST Sample Screen Display (Example)
Courtesy of NISSAN NORTH AMERICA, INC.
Perform each diagnostic service according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.

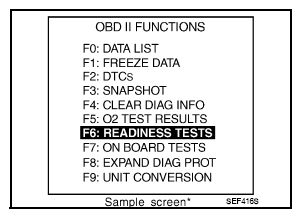

Fig 3: Generic Scan Tool Readiness Test Screen Display
Courtesy of NISSAN NORTH AMERICA, INC.
