Control System Connector Terminal Identification

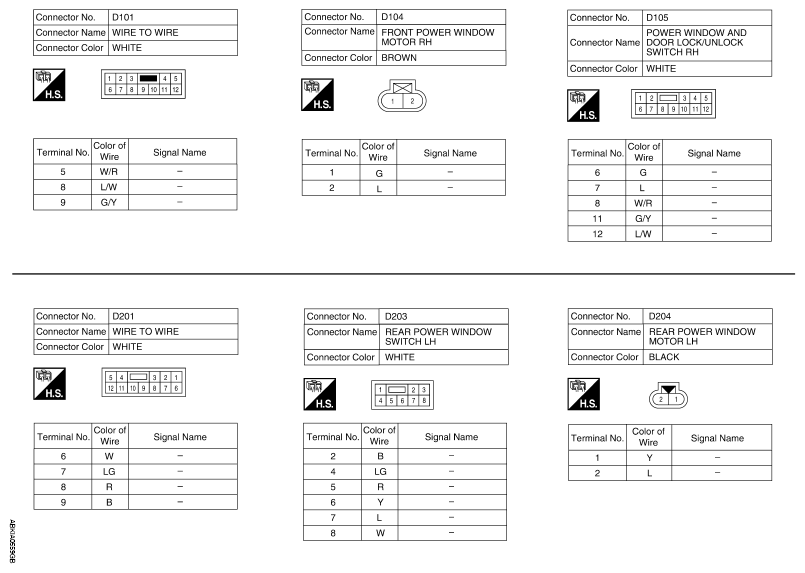

Fig 1: Identifying Power Window System Connectors (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

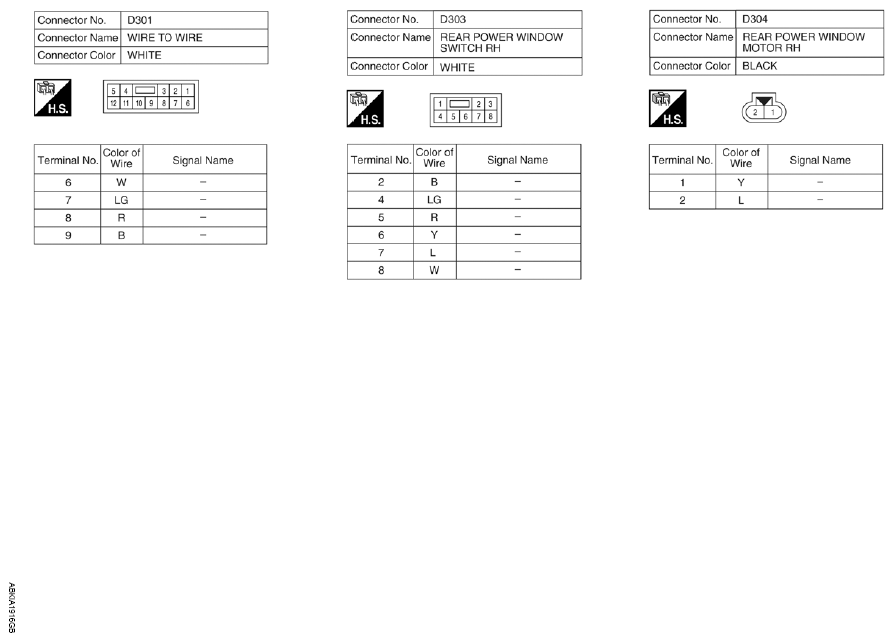

Fig 2: Identifying Power Window System Connectors (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Power Window System Connectors (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Power Window System Connectors (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Power Window System Connectors (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Power Window System Connectors (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
