Engine Control System: Wiring Diagram

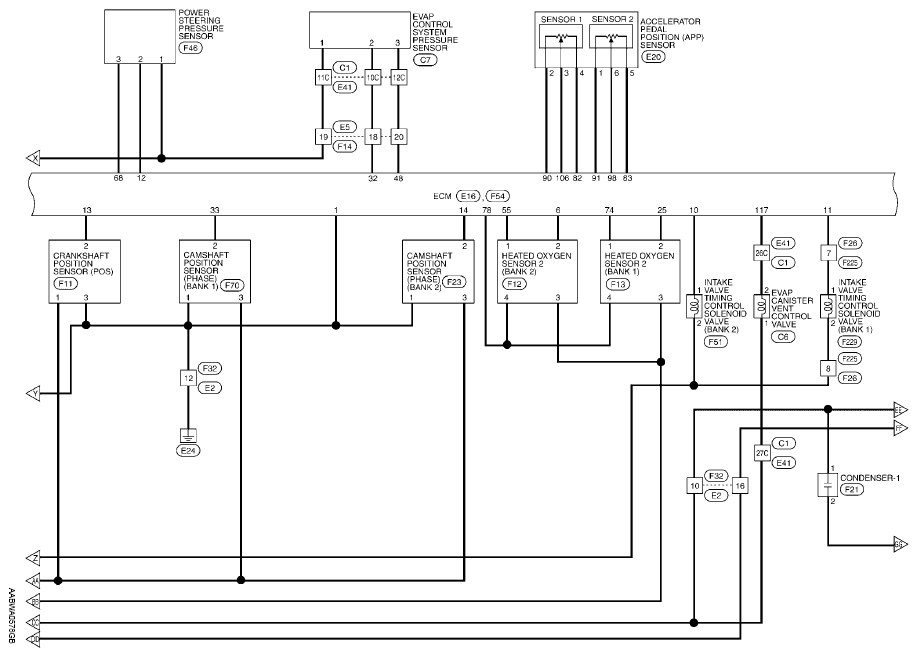

Fig 1: Engine Control System Wiring Diagram (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

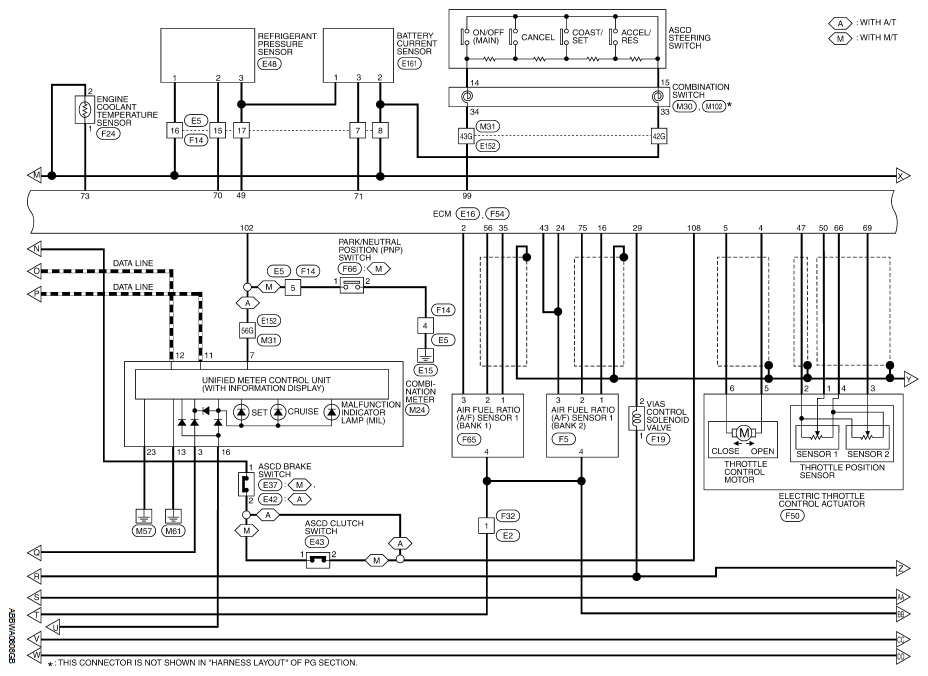

Fig 2: Engine Control System Wiring Diagram (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

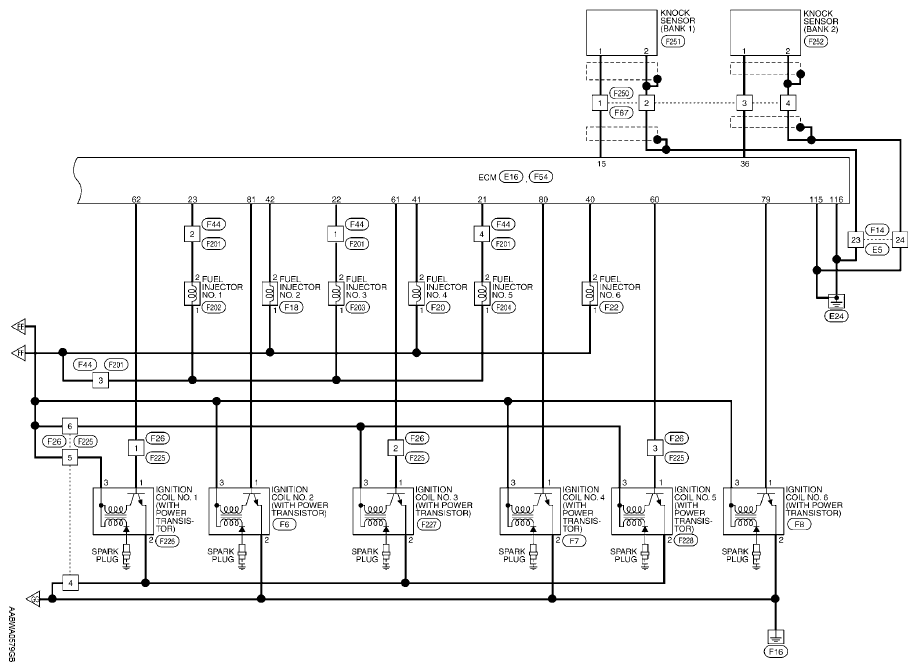

Fig 3: Engine Control System Wiring Diagram (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

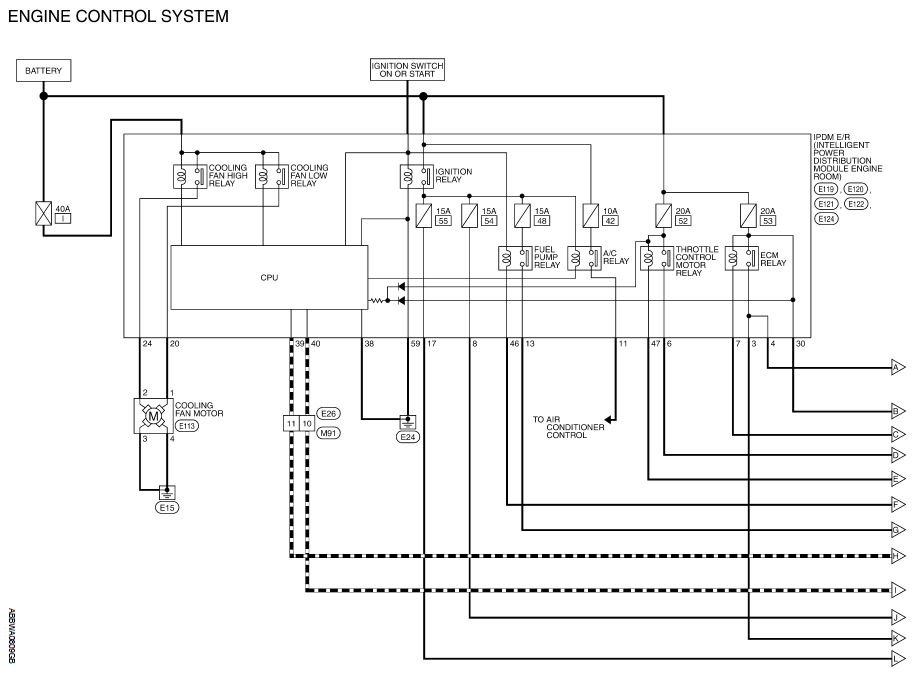

Fig 4: Engine Control System Wiring Diagram (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

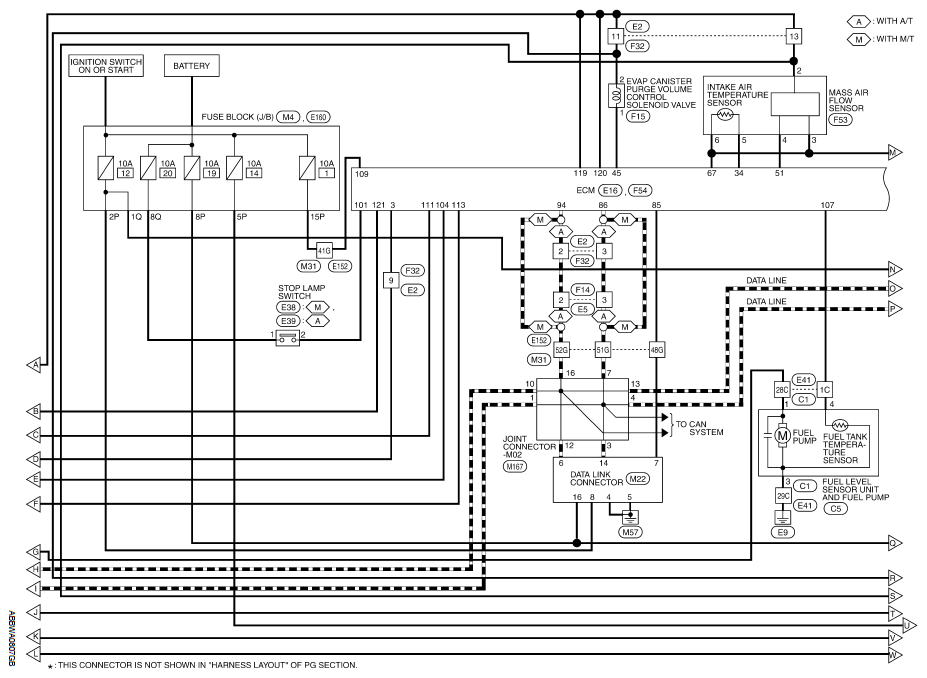

Fig 5: Engine Control System Wiring Diagram (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
