A/T Models

  1. CHECK OVERALL FUNCTION-I

    With CONSULT

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT.
    3. Check "BRAKE SW1" indication under the following conditions.
    Condition INDICATION
    Brake pedal: Slightly depressed OFF
    Brake pedal: Fully released ON

    Without CONSULT

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.
    Condition Voltage
    Brake pedal: Slightly depressed Approximately 0V
    Brake pedal: Fully released Battery voltage
    Fig 1: Checking Voltage Between ECM Terminal 108 And Ground
    G04900670Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO 2.

    NG: GO TO  3.

  2. CHECK OVERALL FUNCTION-II

    With CONSULT

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    Condition INDICATION
    Brake pedal: Fully released OFF
    Brake pedal: Slightly depressed ON

    Without CONSULT

    Check voltage between ECM terminal 101 and ground under the following conditions.

    Condition Voltage
    Brake pedal: Fully released Approximately 0V
    Brake pedal: Slightly depressed Battery voltage
    Fig 2: Checking Voltage Between ECM Connector 101 And Ground
    G04895057Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: INSPECTION END

    NG: GO TO  7.

  3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch (1) harness connector.
      • Stop lamp switch (2)
    3. Turn ignition switch ON.

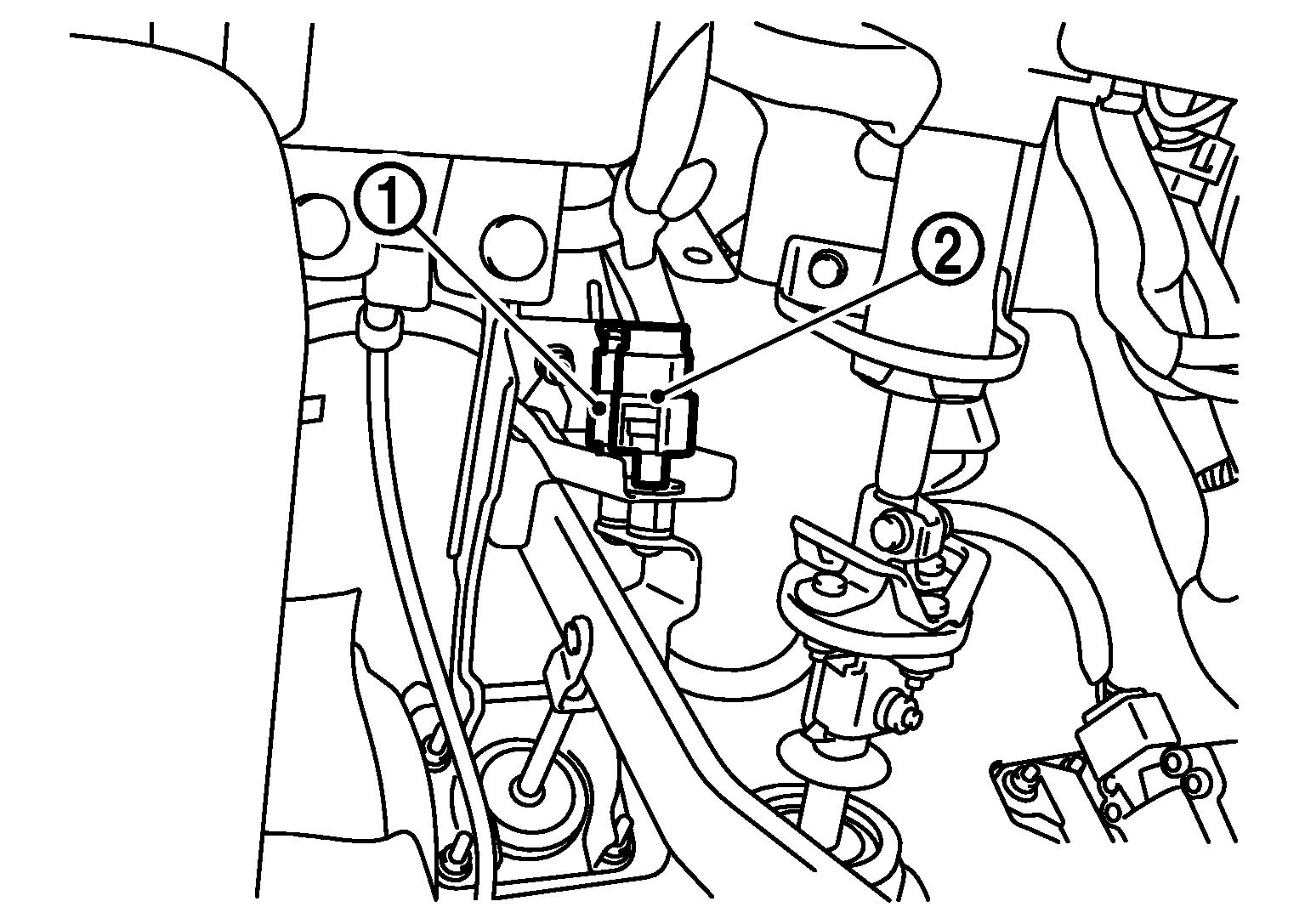

      Fig 3: Identifying ASCD Brake Switch Harness Connector And Stop Lamp Switch
      G05700739Courtesy of NISSAN NORTH AMERICA, INC.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT or tester.

    Voltage: Battery voltage

    Fig 4: Checking Voltage Between ASCD Brake Switch Terminal 1 And Ground
    G04875403Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO  5.

    NG: GO TO 4.

  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10 A fuse (No. 12)
    • Harness for open or short between ASCD brake switch and fuse

    : Repair open circuit or short to ground in harness or connectors.

  5. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2.

      Refer to WIRING DIAGRAM Wiring Diagram.

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 6.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  6. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  11.

    NG: Replace ASCD brake switch. Refer to "EXPLODED VIEW ".

  7. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch (2) harness connector.
      • ASCD brake switch (1)
      Fig 5: Identifying ASCD Brake Switch Harness Connector And Stop Lamp Switch
      G05700739Courtesy of NISSAN NORTH AMERICA, INC.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT or tester.
    Fig 6: Checking Voltage Between Stop Lamp Switch Terminal 1 And Ground
    G04895061Courtesy of NISSAN NORTH AMERICA, INC.

    Voltage: Battery voltage

    OK or NG

    OK: GO TO  9.

    NG: GO TO 8.

  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10 A fuse (No. 20)
    • Harness for open or short between stop lamp switch and battery

    : Repair open circuit or short to ground or short to power in harness or connectors.

  9. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.

      Refer to WIRING DIAGRAM Wiring Diagram.

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 10.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  10. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 11.

    NG: Replace stop lamp switch. Refer to "EXPLODED VIEW ".

  11. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    : INSPECTION END

M/T MODELS

  1. CHECK OVERALL FUNCTION-I

    With CONSULT

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT.
    3. Check "BRAKE SW1" indication under the following conditions.
      Condition INDICATION
      Clutch pedal and/or brake pedal: Slightly depressed OFF
      Clutch pedal and brake pedal: Fully released ON

    Without CONSULT

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.
    Condition Voltage
    Clutch pedal and/or brake pedal: Slightly depressed Approximately 0V
    Clutch pedal and brake pedal: Fully released Battery voltage
    Fig 7: Checking Voltage Between ECM Terminal 108 And Ground
    G04900670Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO 2.

    NG: GO TO  3.

  2. CHECK OVERALL FUNCTION-II

    With CONSULT

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    Condition INDICATION
    Brake pedal: Fully released OFF
    Brake pedal: Slightly depressed ON

    Without CONSULT

    Check voltage between ECM terminal 101 and ground under the following conditions.

    Condition Voltage
    Brake pedal: Fully released Approximately 0V
    Brake pedal: Slightly depressed Battery voltage
    Fig 8: Checking Voltage Between ECM Terminal 101 And Ground
    G04895057Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: INSPECTION END

    NG: GO TO  10.

  3. CHECK ASCD CLUTCH SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD clutch switch harness connector.
    3. Turn ignition switch ON.
      Fig 9: Identifying ASCD Clutch Switch And Clutch Pedal
      G04895066Courtesy of NISSAN NORTH AMERICA, INC.
    4. Check voltage between ASCD clutch switch terminal 1 and ground under the following conditions with CONSULT or tester.
    Condition Voltage
    Brake pedal: Slightly depressed Approximately 0V
    Brake pedal: Fully released Battery voltage
    Fig 10: Checking Voltage Between ASCD Clutch Switch Terminal 1 And Ground
    G04875409Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO  8.

    NG: GO TO 4.

  4. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch harness connector.
    3. Turn ignition switch ON.
      Fig 11: Identifying ASCD Brake Switch, Brake Pedal And Stop Lamp Switch
      G04895051Courtesy of NISSAN NORTH AMERICA, INC.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT or tester.

      Voltage: Battery voltage

      Fig 12: Checking Voltage Between ASCD Brake Switch Terminal 1 And Ground
      G04875403Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

    OK: GO TO  6.

    NG: GO TO 5.

  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10 A fuse (No. 12)
    • Harness for open or short between ASCD brake switch and fuse

    : Repair open circuit or short to ground in harness or connectors.

  6. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between ASCD brake switch terminal 2 and ASCD clutch switch terminal 1.

      Refer to WIRING DIAGRAM Wiring Diagram.

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 7.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  7. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  14.

    NG: Replace ASCD brake switch. Refer to "EXPLODED VIEW ".

  8. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD clutch switch terminal 2.

      Refer to WIRING DIAGRAM Wiring Diagram.

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 9.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  9. CHECK ASCD CLUTCH SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  14.

    NG: Replace ASCD clutch switch. Refer to "EXPLODED VIEW ".

  10. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch harness connector.
      Fig 13: Identifying ASCD Brake Switch, Brake Pedal And Stop Lamp Switch
      G04895051Courtesy of NISSAN NORTH AMERICA, INC.
    3. Check voltage between stop lamp switch terminal 2 and ground with CONSULT or tester.

    Voltage: Battery voltage

    Fig 14: Checking Voltage Between Stop Lamp Switch Terminal 2 And Ground
    G05700750Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO  12.

    NG: GO TO 11.

  11. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10 A fuse (No. 20)
    • Harness for open or short between stop lamp switch and battery

    : Repair open circuit or short to ground or short to power in harness or connectors.

  12. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.

      Refer to WIRING DIAGRAM Wiring Diagram.

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 13.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  13. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 14.

    NG: Replace stop lamp switch. Refer to "EXPLODED VIEW ".

  14. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    : INSPECTION END
