System - Engine Mechanical & Other

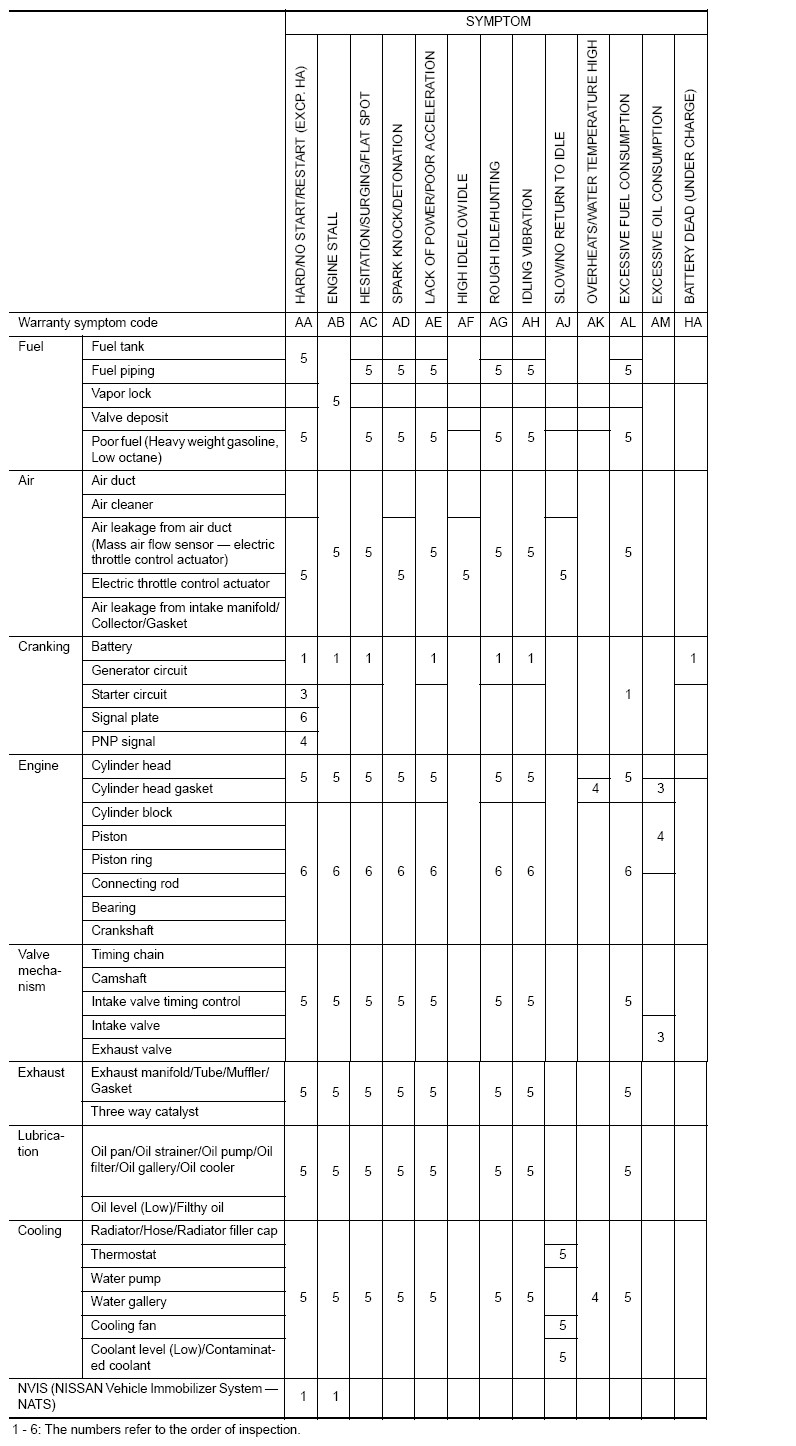

Fig 1: Engine Control System Symptoms Chart (Engine Mechanical & Other)
G08201419Courtesy of NISSAN NORTH AMERICA, INC.
