Component Parts Location

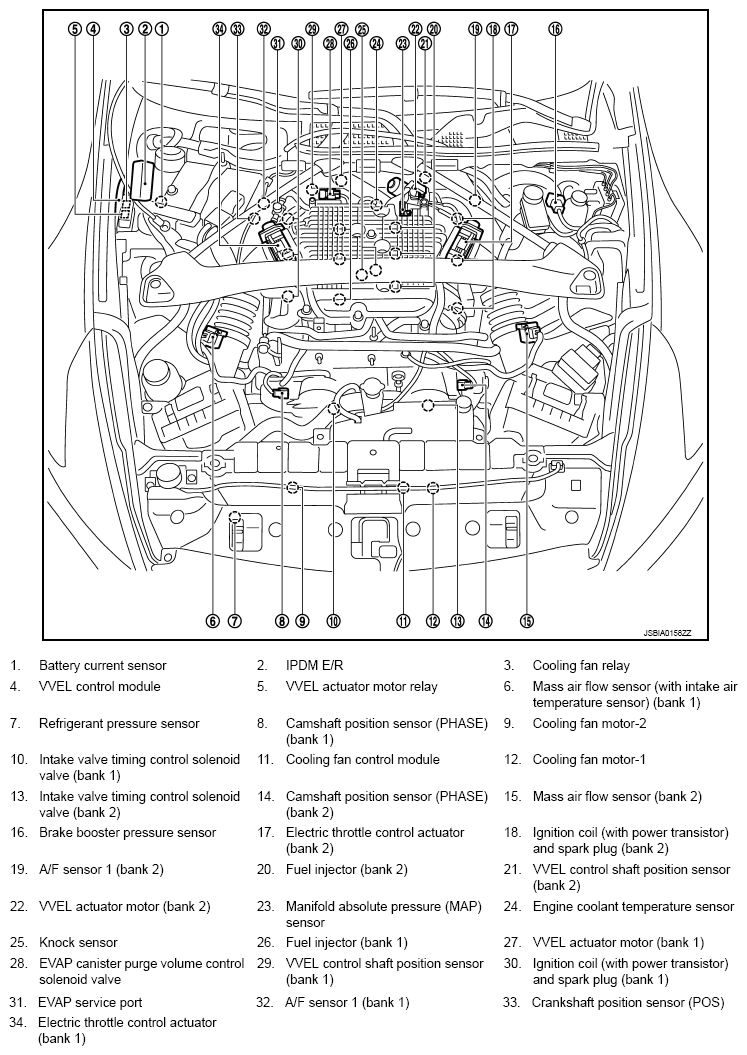

Fig 1: Automatic Speed Control Device Components Location

G08674606

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensor (Bank 1 And 2)

G08674607

Courtesy of NISSAN NORTH AMERICA, INC.

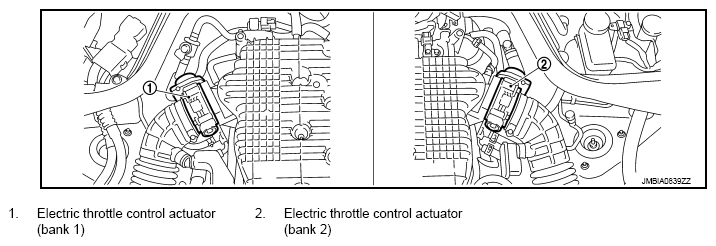

Fig 3: Identifying Electric Throttle Control Actuator (Bank 1 And 2)

G08674608

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Cooling Fan Motor, Relay And Control Module

G08674609

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying HO2S2 (Bank 1 And 2)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor 1 (Bank 1 And 2)

G08674611

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor 1 Harness Connector (Bank 1 And 2)

G08674612

Courtesy of NISSAN NORTH AMERICA, INC.

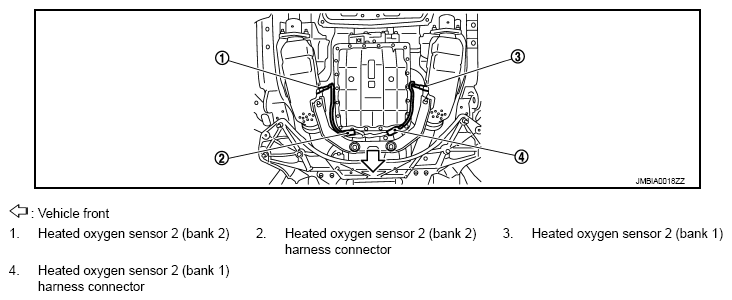

Fig 8: Identifying Heated Oxygen Sensor 2 And Harness Connector (Bank 1 And 2)

G08674613

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure And Brake Booster Pressure Sensor

G08674614

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor (Bank 1 And 2)

G08674615

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector (Bank 1 And 2)

G08674616

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Ignition Coil And Related Components

G08674617

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying A/F Sensor 1, Engine Coolant Temperature And Crankshaft Position Sensor

G08674618

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current And Refrigerant Pressure Sensor

G08674619

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Alternator, Power Steering Pressure And Engine Oil Temperature Sensor

G08674620

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Service Port, Canister Vent Control Valve

G08674621

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump, Harness Connector And Fuel Pressure Regulator

G08674622

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying ECM And Accelerator Pedal Position Sensor

G08674623

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying ASCD Steering, CANCEL, MAIN, SET/COAST, RESUME/ACCELERATE Switch

G08674624

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed And Gear Level Position Sensor

G08674625

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Stop Lamp, ASCD Brake, Clutch Pedal Position And Clutch Interlock Switch

G08674626

Courtesy of NISSAN NORTH AMERICA, INC.
