Component Parts Location

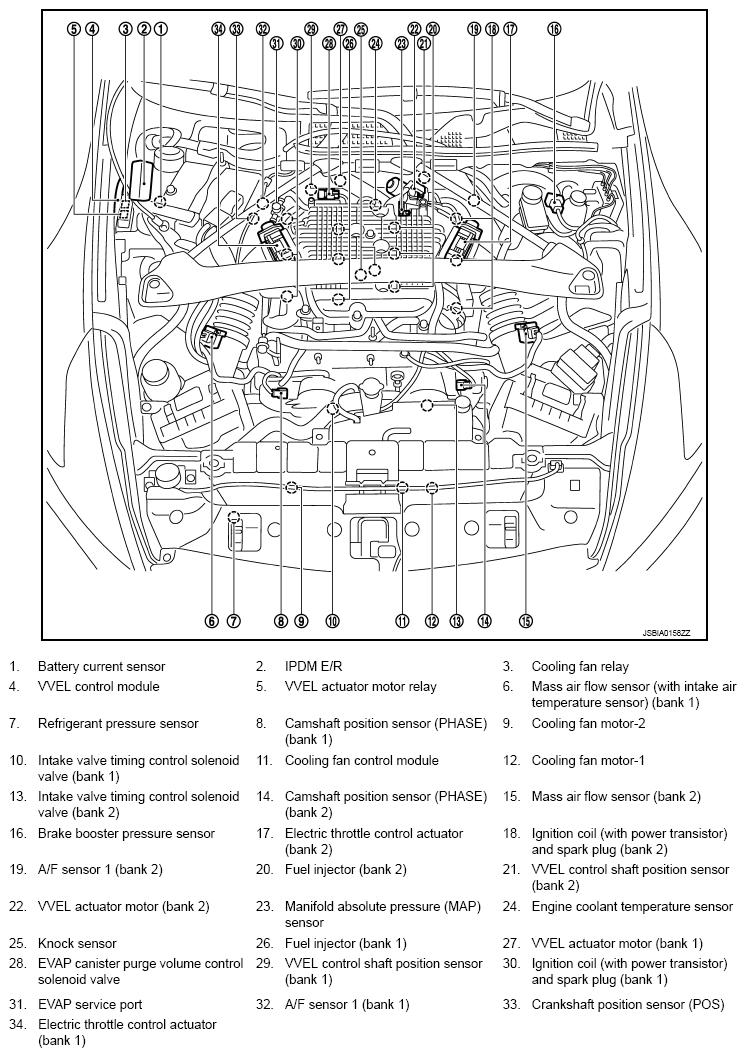

Fig 1: Electric Ignition System Components Location

G08674562

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensor (Bank 1 And 2)

G08674563

Courtesy of NISSAN NORTH AMERICA, INC.

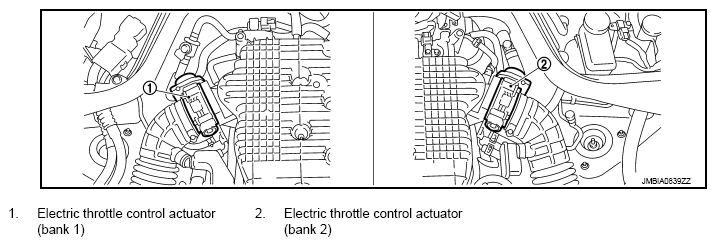

Fig 3: Identifying Electric Throttle Control Actuator (Bank 1 And 2)

G08674564

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Cooling Fan Motor, Control Module And Relay

G08674565

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying HO2S2 (Bank 1 And 2)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor (Bank 1 And 2)

G08674567

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor Harness Connector (Bank 1 And 2)

G08674568

Courtesy of NISSAN NORTH AMERICA, INC.

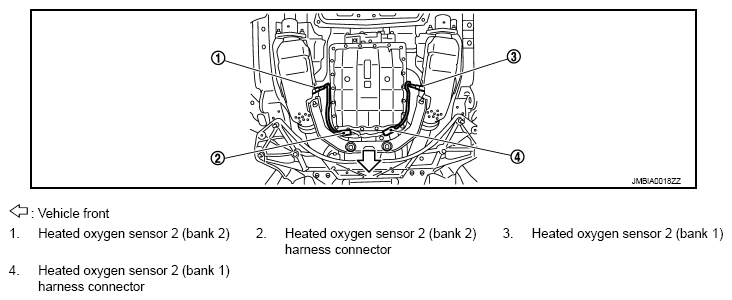

Fig 8: Identifying Heated Oxygen Sensor 2 (Bank 1 And 2)

G08674569

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure And Brake Booster Pressure Sensor, VVEL Control Module

G08674570

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor (Bank 1 And 2), VVEL Actuator Motor

G08674571

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor (Bank 1 And 2), Intake Valve Timing Control Solenoid Valve Harness Connector

G08674572

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Ignition Coils And Related Components

G08674573

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Coolant Temperature, A/F Sensor 1 And Crankshaft Position Sensor

G08674574

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current And Refrigerant Pressure Sensor

G08674575

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Alternator, Power Steering Pressure And Engine Oil Temperature Sensor

G08674576

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Service Port, Canister Vent Control Valve And EVAP Canister

G08674577

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Fuel Pressure Regulator, Fuel Tank Temperature Sensor

G08674578

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying ECM And Accelerator Pedal Position Sensor

G08674579

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying ASCD Steering, CANCEL, SET/COAST And MAIN Switch

G08674580

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed And Gear Lever Position Sensor

G08674581

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Stop Lamp, ASCD Brake And Clutch Interlock Switch, Clutch And Brake Pedal

G08674582

Courtesy of NISSAN NORTH AMERICA, INC.
