Component Parts Location

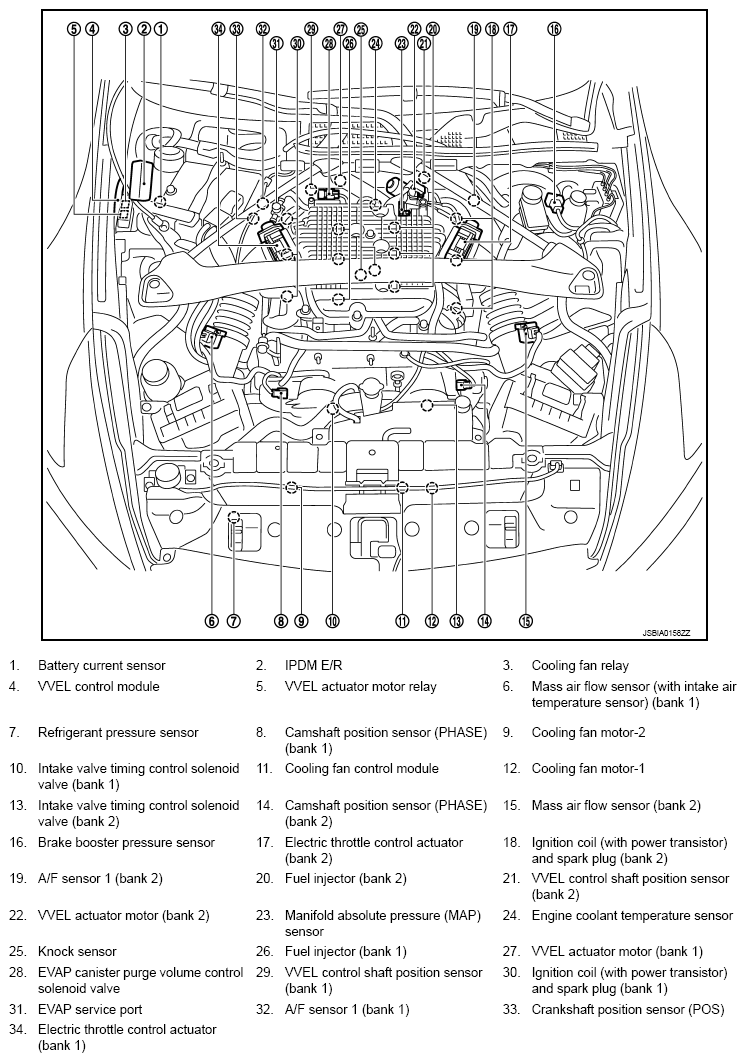

Fig 1: ECM Components Location

G08674516

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensor (Bank 1 And 2)

G08674517

Courtesy of NISSAN NORTH AMERICA, INC.

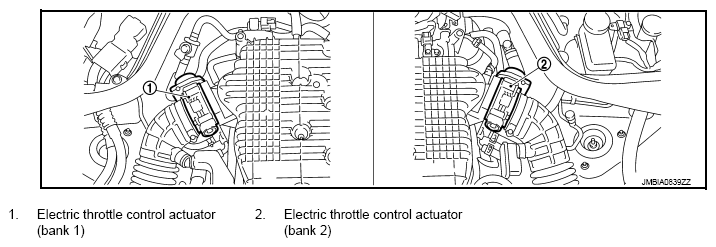

Fig 3: Identifying Electric Throttle Control Actuator (Bank 1 And 2)

G08674518

Courtesy of NISSAN NORTH AMERICA, INC.

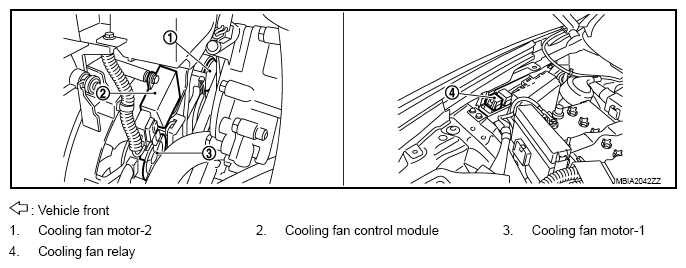

Fig 4: Identifying Cooling Fan Motor, Control Module And Fan Relay

G08674519

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying HO2S2 (Bank 1 And 2)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor 1 (Bank 1 And 2)

G08674521

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor 1 Harness Connector (Bank 1 And 2)

G08674522

Courtesy of NISSAN NORTH AMERICA, INC.

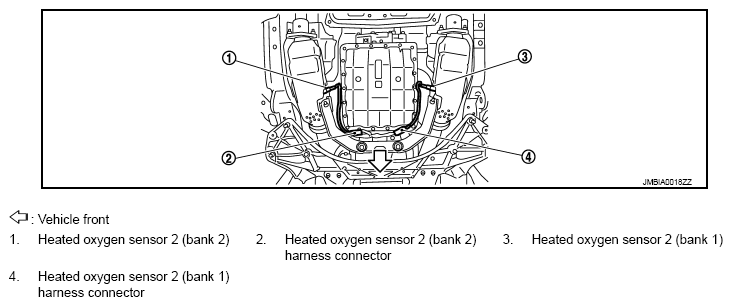

Fig 8: Identifying Heated Oxygen Sensor 2 (Bank 1 And 2), Harness Connector

G08674523

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure And Brake Booster Pressure Sensor, VVEL Control Module

G08674524

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor (Bank 1 And 2), VVEL Actuator Motor

G08674525

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor (Bank 1 And 2), Intake Valve Timing Control Solenoid Valve Harness Connector

G08674526

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Ignition Coil And Related Components

G08674527

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Coolant Temperature, A/F Sensor 1 And Crankshaft Position Sensor

G08674528

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current And Refrigerant Pressure Sensor

G08674529

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Alternator, Power Steering Pressure And Engine Oil Temperature Sensor

G08674530

Courtesy of NISSAN NORTH AMERICA, INC.

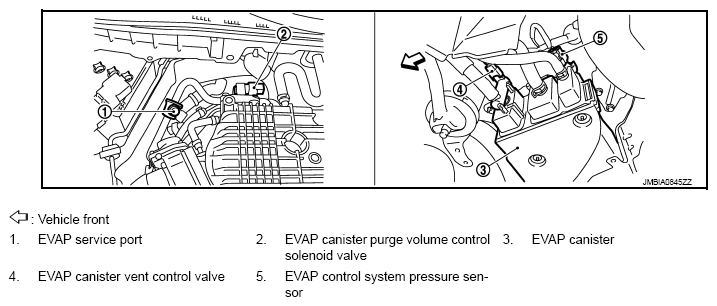

Fig 16: Identifying EVAP Service Port, Canister Vent Control Valve

G08674531

Courtesy of NISSAN NORTH AMERICA, INC.

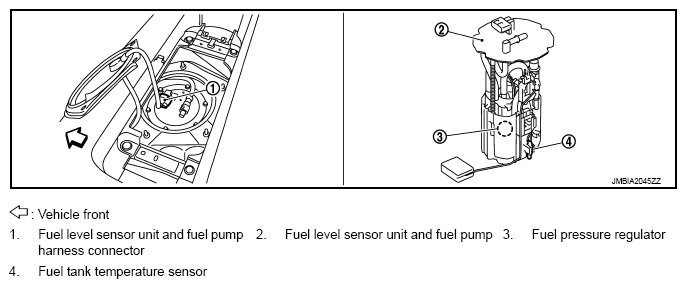

Fig 17: Identifying Fuel Tank Temperature Sensor, Fuel Pressure Regulator

G08674532

Courtesy of NISSAN NORTH AMERICA, INC.

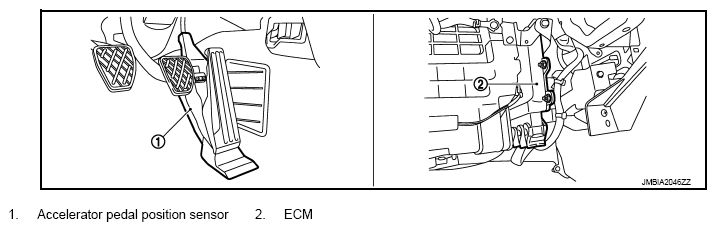

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

G08674533

Courtesy of NISSAN NORTH AMERICA, INC.

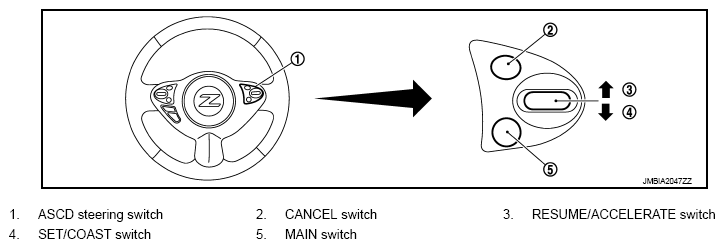

Fig 19: Identifying ASCD Steering, CANCEL, MAIN, SET/COAST And MAIN Switch

G08674534

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed And Gear Lever Position Sensor

G08674535

Courtesy of NISSAN NORTH AMERICA, INC.

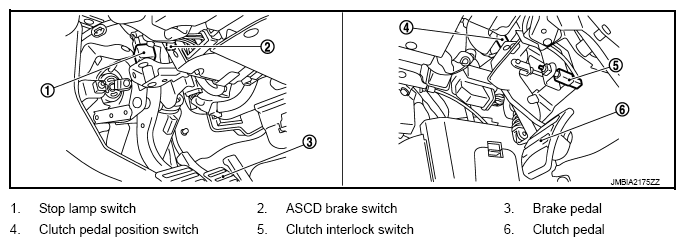

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Clutch And Brake Pedal

G08674536

Courtesy of NISSAN NORTH AMERICA, INC.
