Component Parts Location

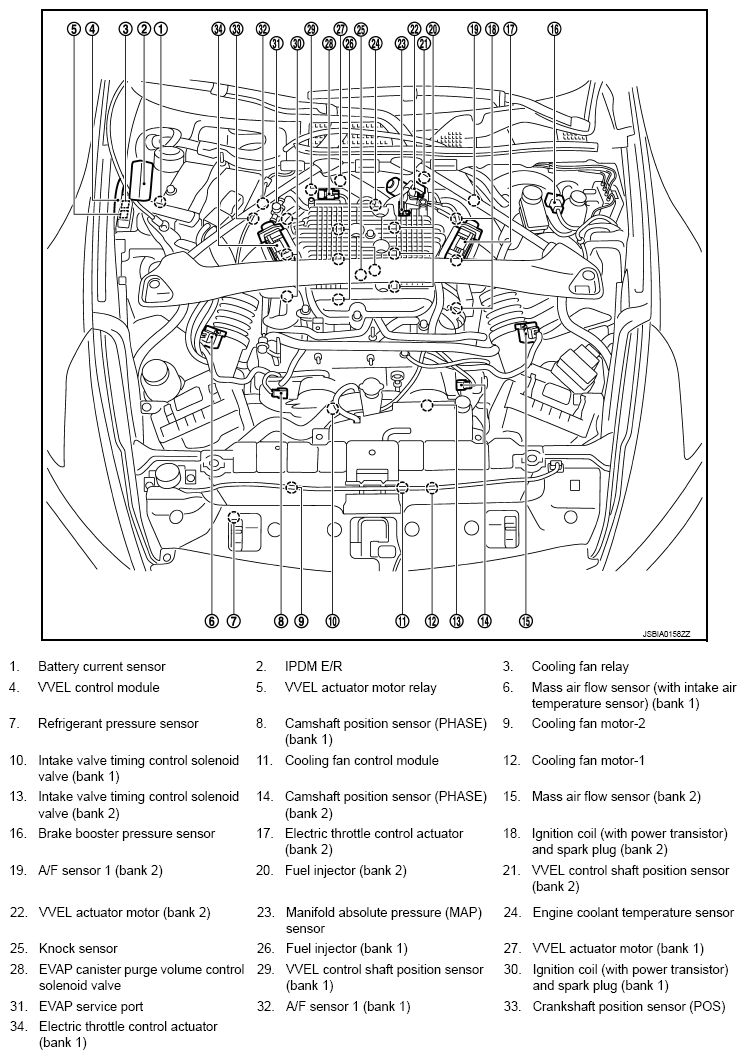

Fig 1: Fuel Filler Cap Warning System Components Location

G08674741

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensor (Bank 1 And 2)

G08674742

Courtesy of NISSAN NORTH AMERICA, INC.

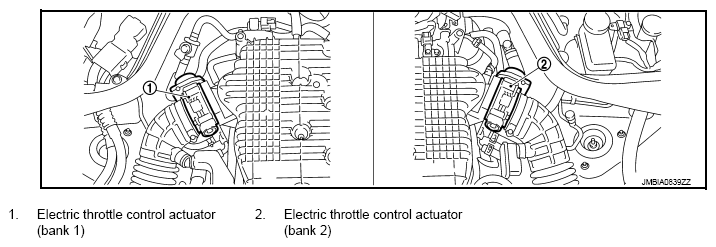

Fig 3: Identifying Electric Throttle Control Actuator (Bank 1 And 2)

G08674743

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Cooling Fan Motor, Relay And Control Module

G08674744

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying HO2S2 (Bank 1 And 2)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor 1 (Bank 1 And 2)

G08674746

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor 1 Harness Connector (Bank 1 And 2)

G08674747

Courtesy of NISSAN NORTH AMERICA, INC.

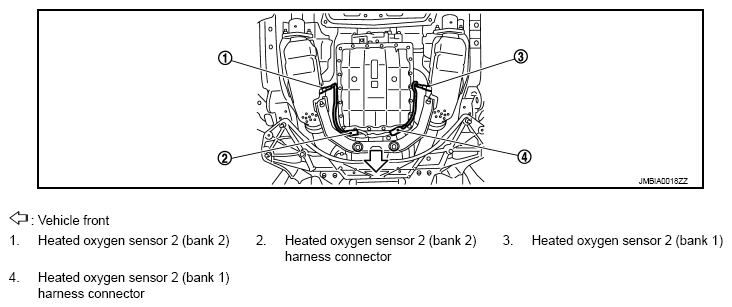

Fig 8: Identifying Heated Oxygen Sensor 2 And Harness Connector (Bank 1 And 2)

G08674748

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure And Brake Booster Pressure Sensor, VVEL Control Module

G08674749

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor, Actuator Motor (Bank 1 And 2)

G08674750

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor, Intake Valve Timing Control Solenoid Valve Harness Connector (Bank 1 And 2)

G08674751

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Ignition Coil And Related Components

G08674752

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Coolant Temperature And Crankshaft Position Sensor

G08674753

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current And Refrigerant Pressure Sensor

G08674754

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Alternator, Power Steering Pressure And Engine Oil Temperature Sensor

G08674755

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Service Port And Canister Vent Control Valve

G08674756

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump, Harness Connector And Fuel Pressure Regulator

G08674757

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying ECM And Accelerator Pedal Position Sensor

G08674758

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying ASCD Steering, CANCEL, MAIN, SET/COAST And RESUME/ACCELERATE Switch

G08674759

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed And Gear Lever Position Sensor

G08674760

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Stop Lamp, ASCD Brake And Clutch Pedal Position Switch, Brake And Clutch Pedal

G08674761

Courtesy of NISSAN NORTH AMERICA, INC.
