Removal and Installation - ITS Control Unit: Removal

  1. Disconnect the battery negative terminal. Refer to "REMOVAL AND INSTALLATION (BATTERY) ".
  2. Remove the center console assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the harness connectors (B, C) from the ITS control unit (1).
  4. Remove bolts (←) and plastic screw (A) that retain the ITS control unit (1) and remove.

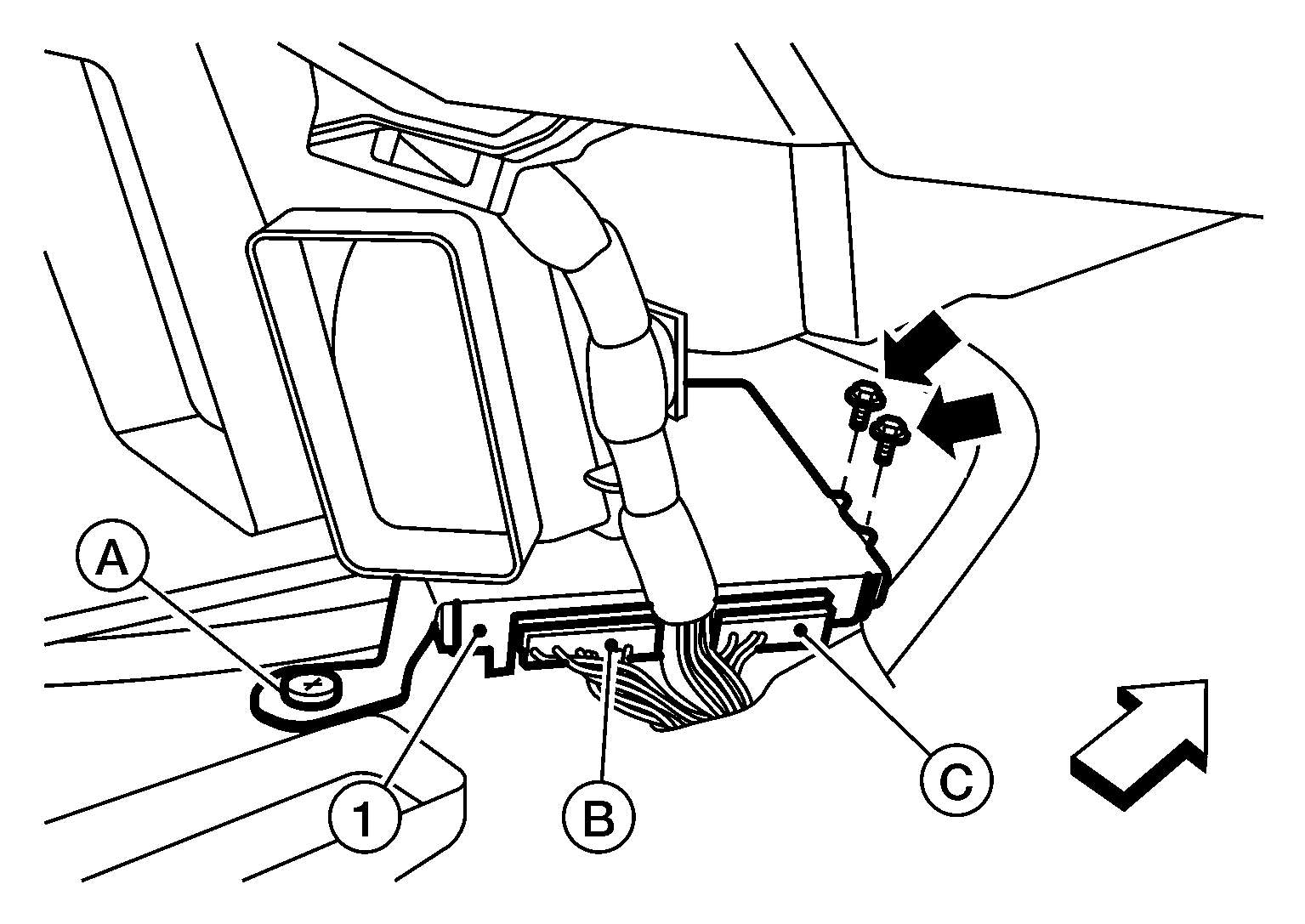

    Fig 1: Locating ITS Control Unit Bolts
    G08687217Courtesy of NISSAN NORTH AMERICA, INC.
