System - Basic Engine Control System

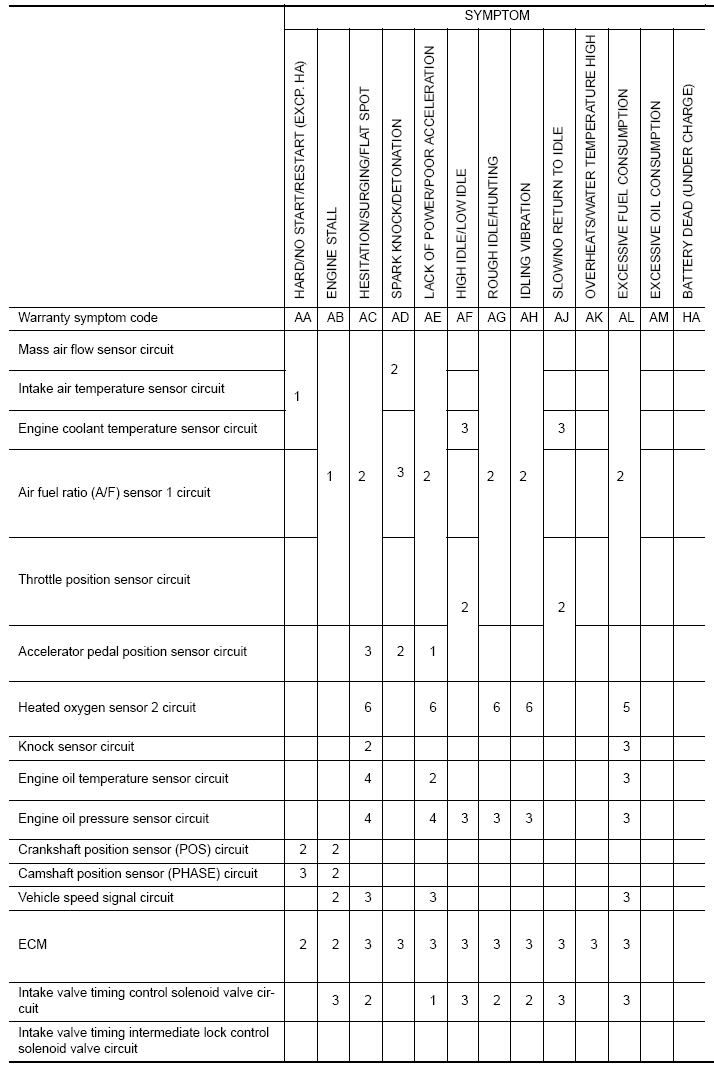

Fig 1: Engine Control System Symptoms Chart (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

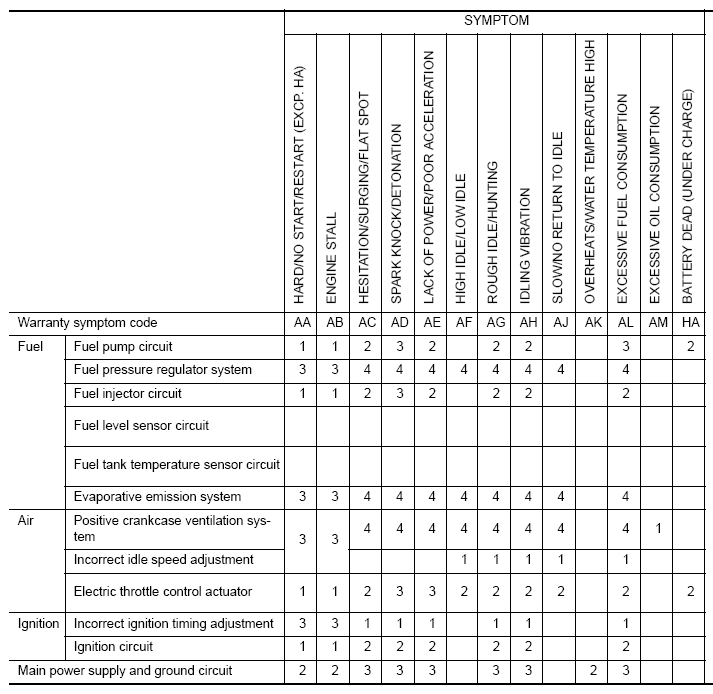

Fig 2: Engine Control System Symptoms Chart (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

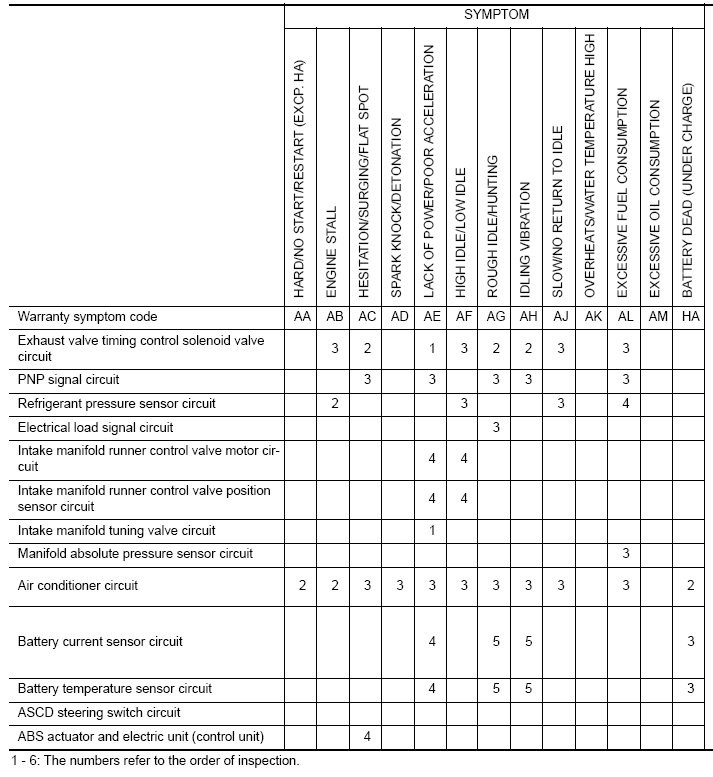

Fig 3: Engine Control System Symptoms Chart (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

(continued on next table)
