Disassembly and Assembly: Disassembly

NOTE: Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to the terminals.

Disconnect the red, white (A) and double black connector (B).
- Press the tabs on the terminals to release the locking tabs.

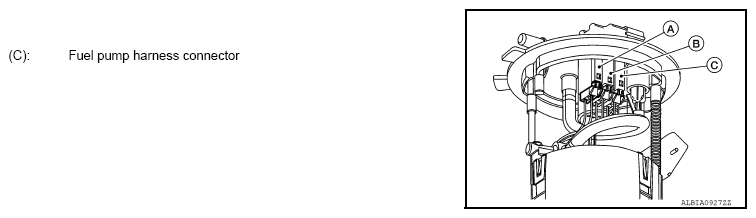

  Fig 1: Identifying Red, White And Double Black Connectors
  Courtesy of NISSAN NORTH AMERICA, INC.
Release the two clips and remove the fuel temperature sensor from the pump assembly.

Fig 2: Locating Fuel Pump Assembly Temperature Sensor And Clips
Courtesy of NISSAN NORTH AMERICA, INC.
Release the tab (A) and slide the level sending unit module and float arm assembly (B) up to remove.

Fig 3: Removing Level Sending Unit Module And Float Arm Assembly By Sliding Up
Courtesy of NISSAN NORTH AMERICA, INC.
