Combination Switch Matrix

WARNING: This page is about a different car, the 2013 Nissan Cube. However, it is still accessible from the selected car via links, so may be relevant.

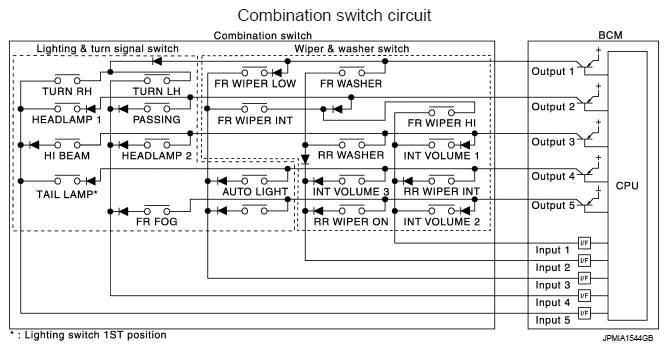

Fig 1: Combination Switch Circuit

Courtesy of NISSAN NORTH AMERICA, INC.

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System	INPUT 1	INPUT 2	INPUT 3	INPUT 4	INPUT 5
OUTPUT 1	-	FR WASHER	FR WIPER LOW	TURN LH	TURN RH
OUTPUT 2	FR WIPER HI	-	FR WIPER INT	PASSING	HEADLAMP 1
OUTPUT 3	INT VOLUME 1	RR WASHER	-	HEADLAMP 2	HI BEAM
OUTPUT 4	RR WIPER INT	INT VOLUME 3	AUTO LIGHT	-	TAIL LAMP
OUTPUT 5	INT VOLUME 2	RR WIPER	-	FR FOG	-

NOTE: Headlamp has a dual system switch.
