Work Support

WARNING: This page is about a different car, the 2013 Nissan Cube. However, it is still accessible from the selected car via links, so may be relevant.

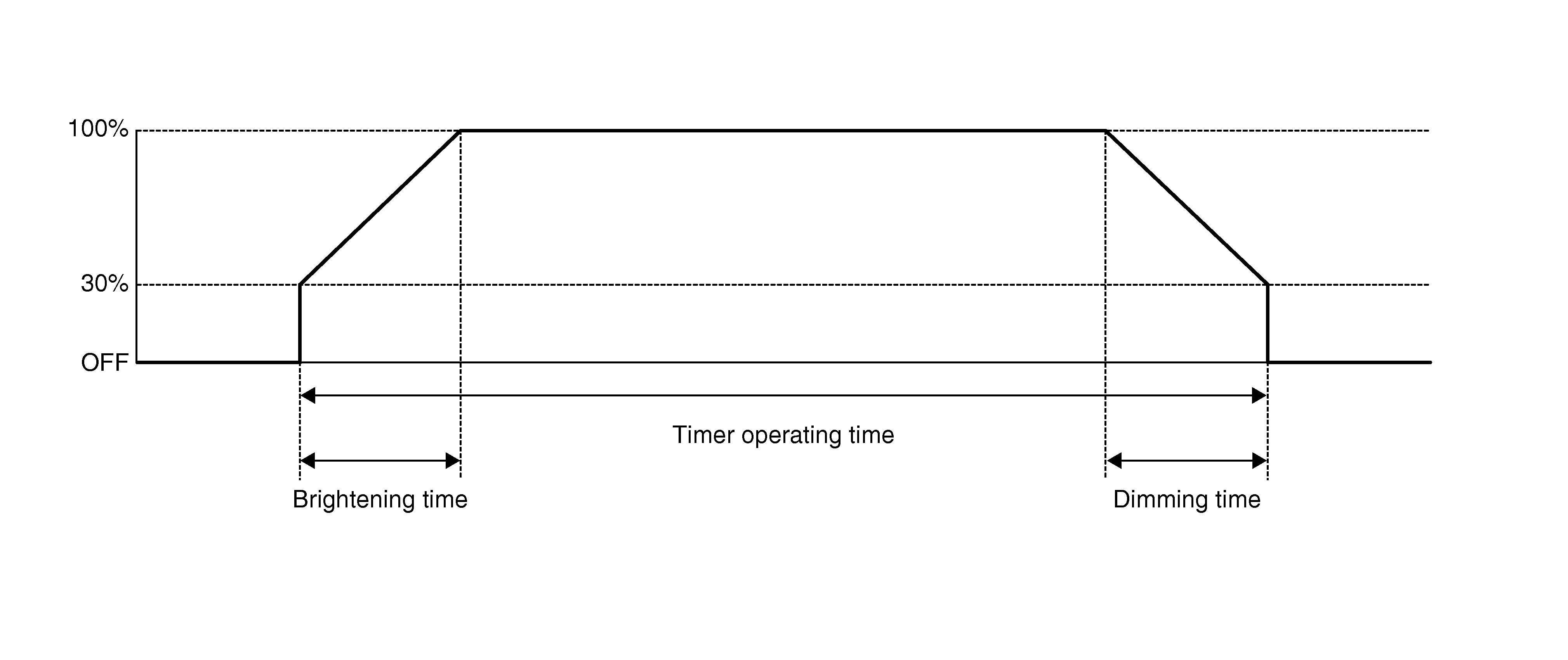

Fig 1: INT Lamp Timing Pattern
G04889363Courtesy of NISSAN NORTH AMERICA, INC.
Service item Setting item Setting
ROOM LAMP TIMER SET MODE 2 7.5 sec. Sets the interior room lamp ON time. (Timer operating time)
MODE 3(1) 15 sec.
MODE 4 30 sec.
SET I/L D-UNLCK INTCON On(1) With the interior room lamp timer function
Off Without the interior room lamp timer function
ROOM LAMP ON TIME SET MODE 1 0.5 sec. Sets the interior room lamp gradual brightening time.
MODE 2(1) 1 sec.
MODE 3 2 sec.
MODE 4 3 sec.
MODE 5 0 sec.
ROOM LAMP OFF TIME SET MODE 1 0.5 sec. Sets the interior room lamp gradual dimming time.
MODE 2(1) 1 sec.
MODE 3 2 sec.
MODE 4 3 sec.
MODE 5 0 sec.
R LAMP TIMER LOGIC SET MODE 1(1) Interior room lamp timer activates with synchronizing all doors.
MODE 2 Interior room lamp timer activates with synchronizing the driver door only.
(1) Factory setting
