Connector End View

WARNING: This page is about a different variant/trim than selected.

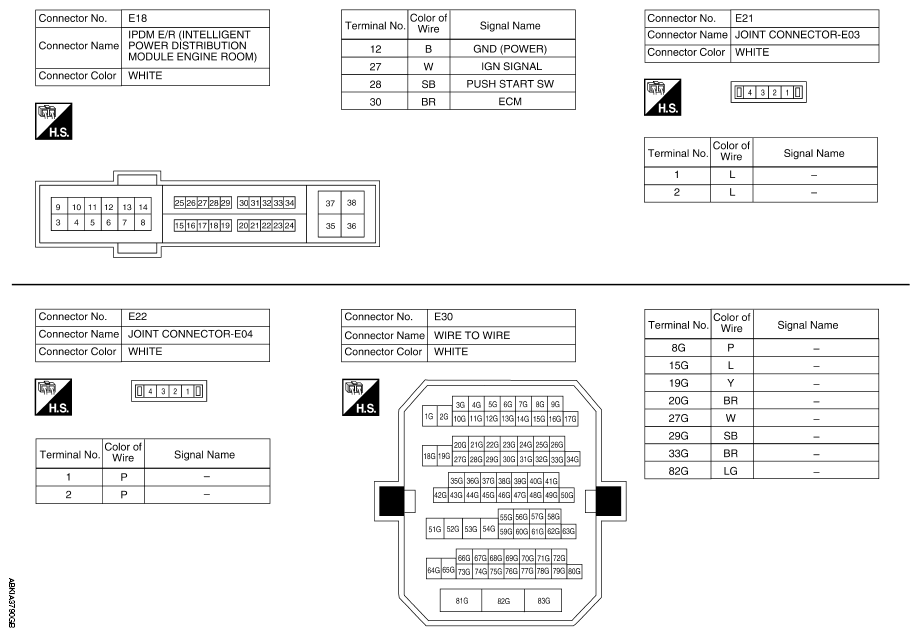

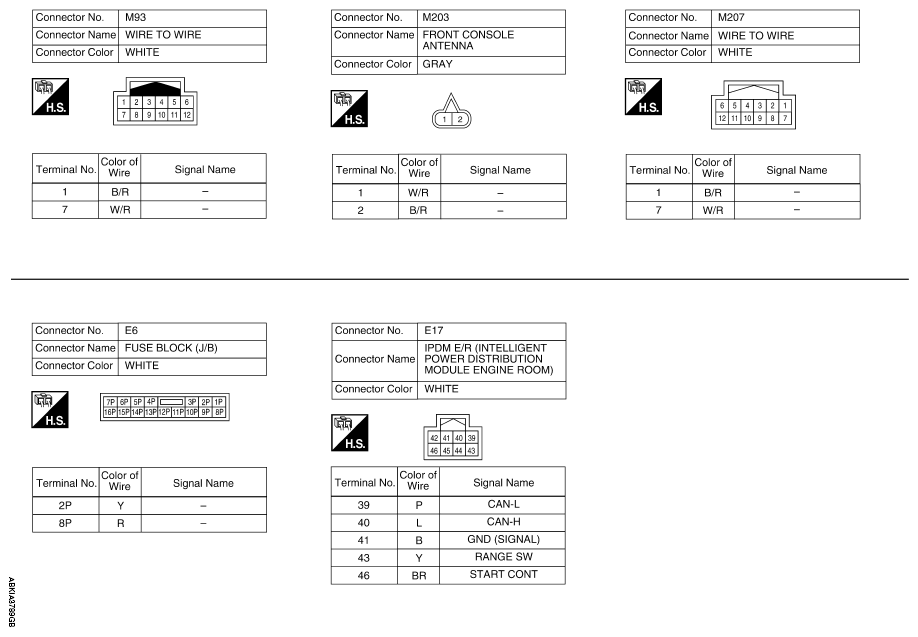

Fig 1: Intelligent Key System/Engine Start Function Connector End View (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

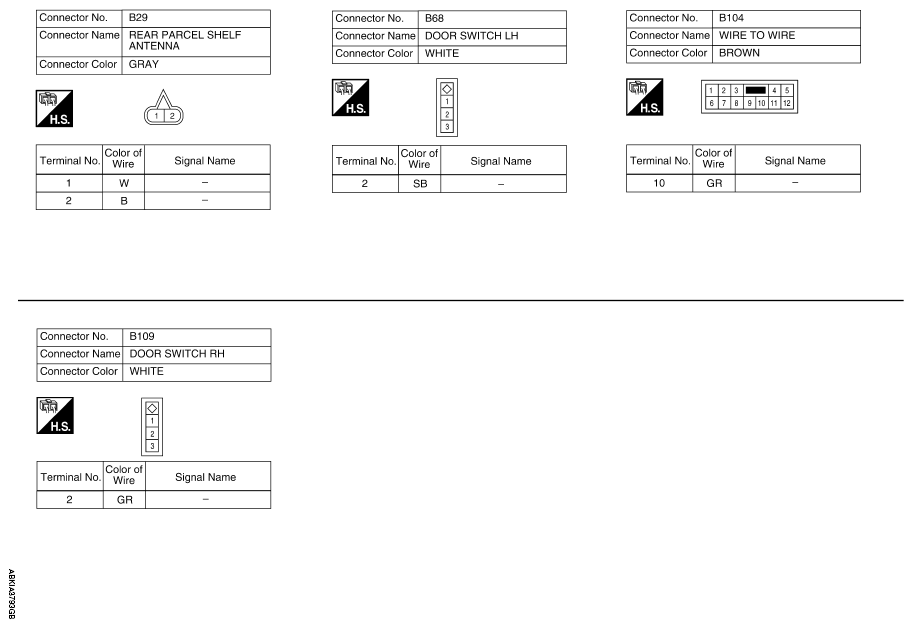

Fig 2: Intelligent Key System/Engine Start Function Connector End View (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

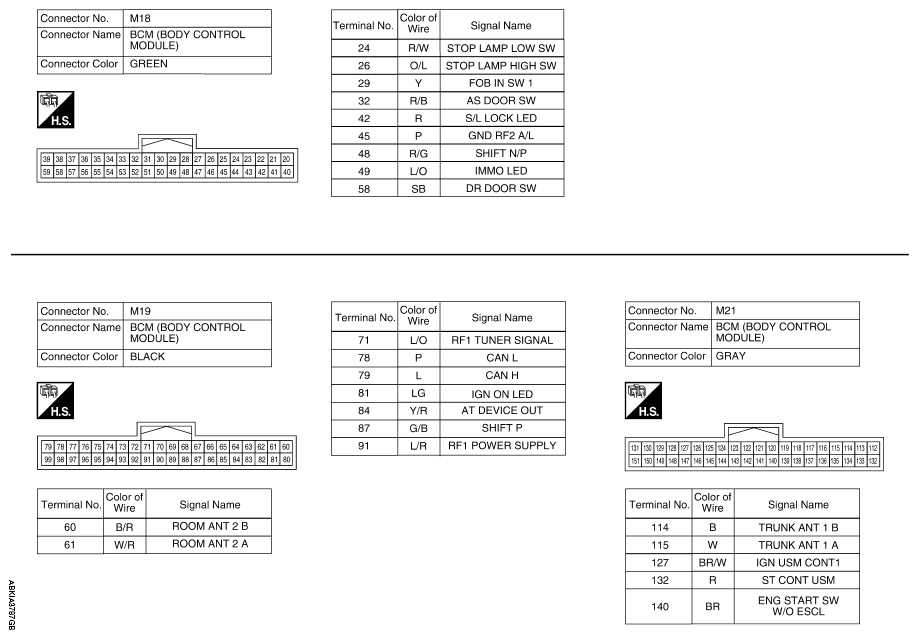

Fig 3: Intelligent Key System/Engine Start Function Connector End View (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

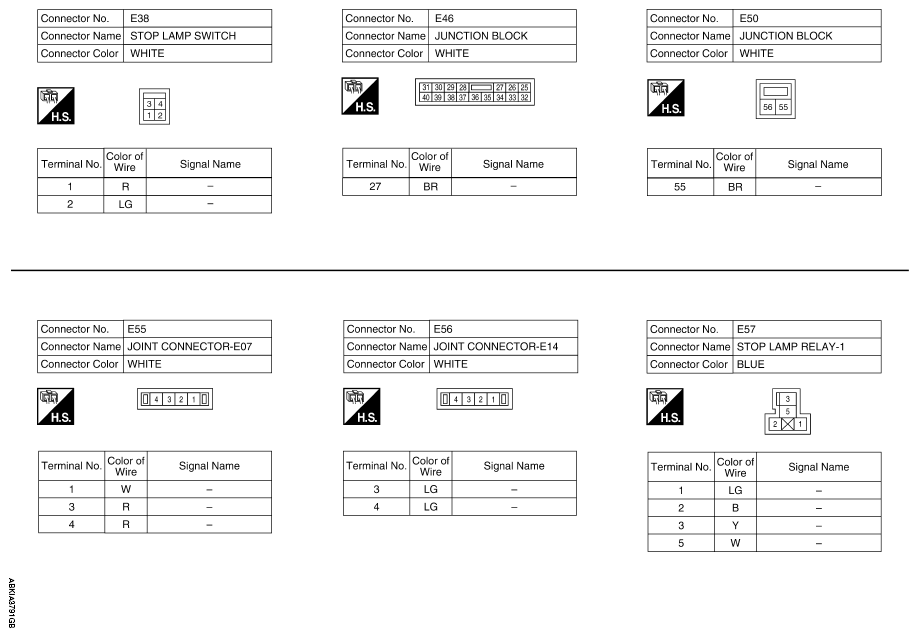

Fig 4: Intelligent Key System/Engine Start Function Connector End View (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

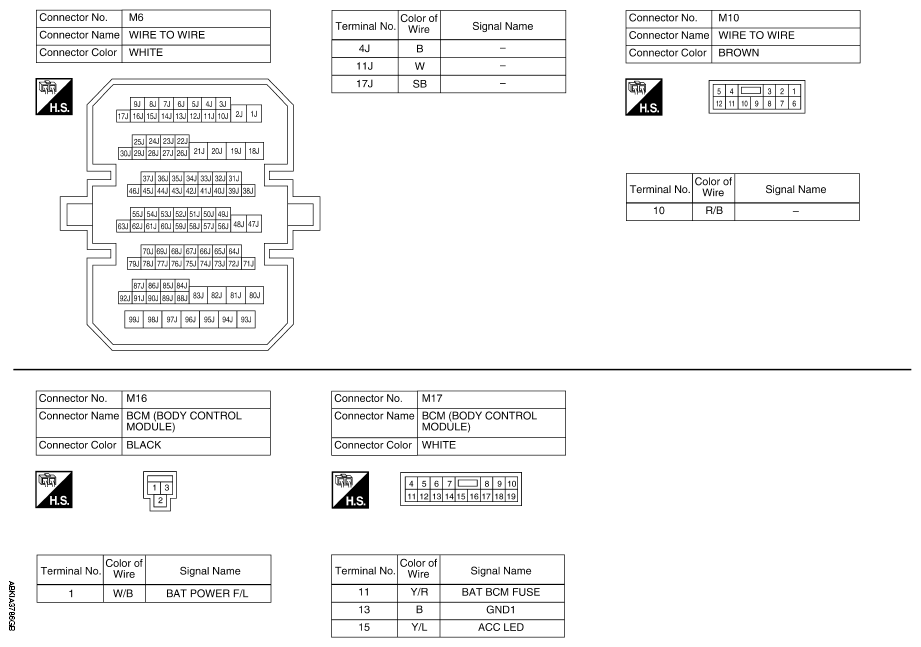

Fig 5: Intelligent Key System/Engine Start Function Connector End View (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

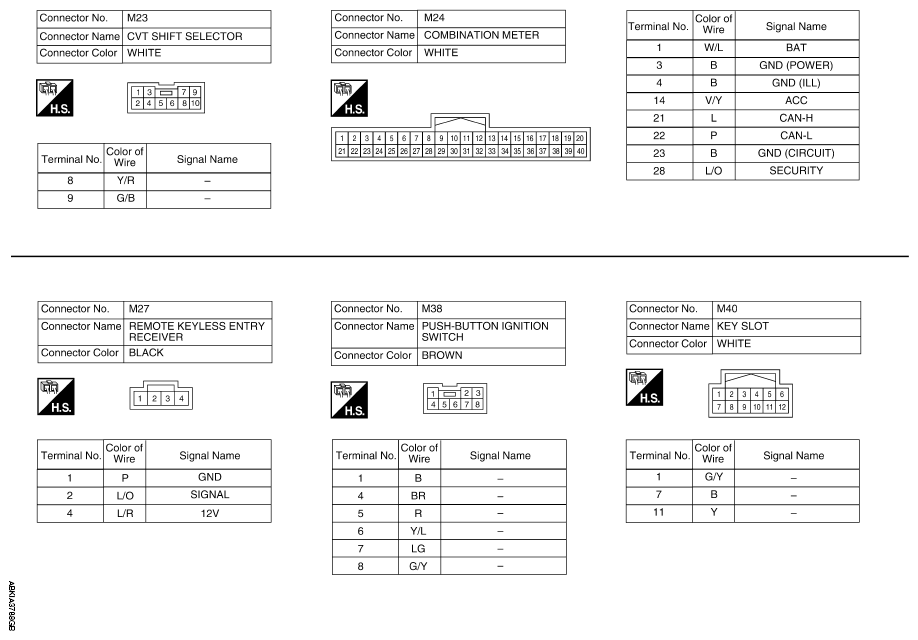

Fig 6: Intelligent Key System/Engine Start Function Connector End View (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

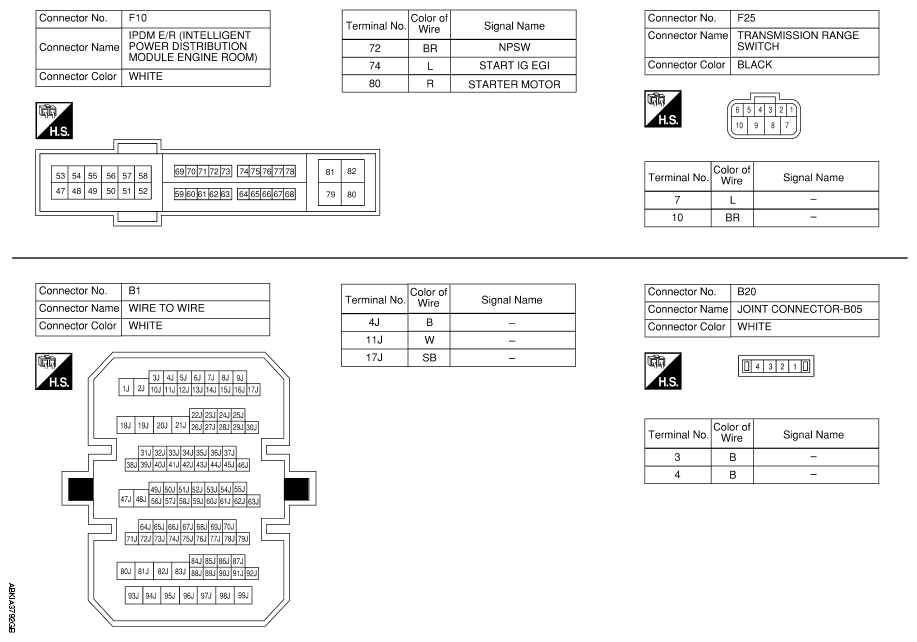

Fig 7: Intelligent Key System/Engine Start Function Connector End View (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

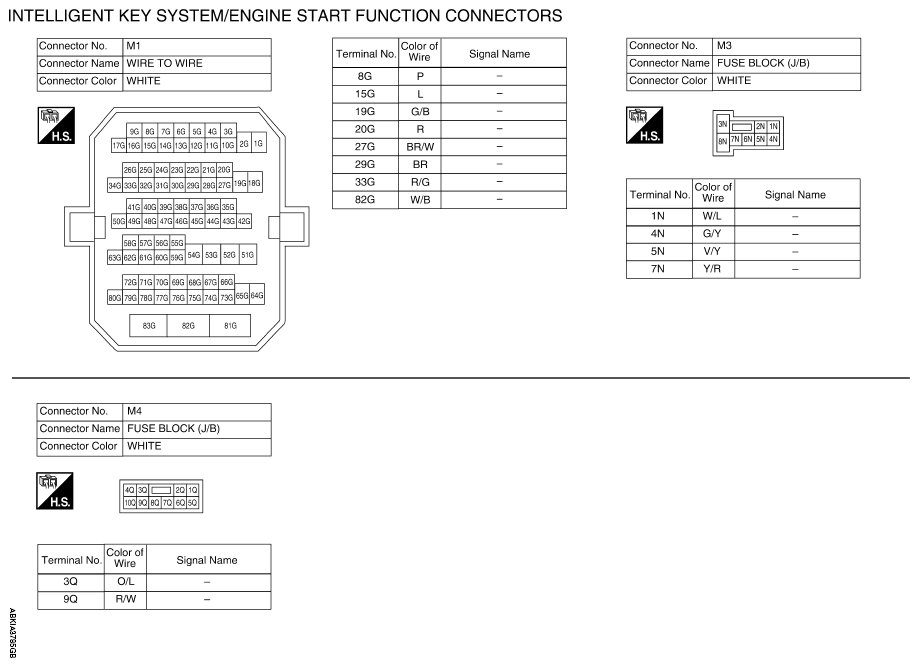

Fig 8: Intelligent Key System/Engine Start Function Connector End View (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Intelligent Key System/Engine Start Function Connector End View (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
