Component Parts Location

WARNING: This page is about a different variant/trim than selected.

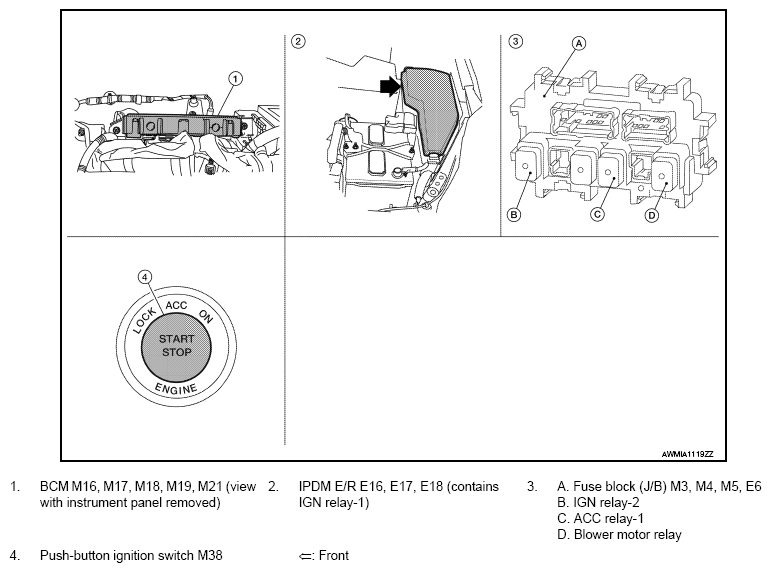

Fig 1: Identifying Power Distribution System Component Parts Location
G08906871Courtesy of NISSAN NORTH AMERICA, INC.
