Connector Terminal Identification

WARNING: This page is about a different variant/trim than selected.

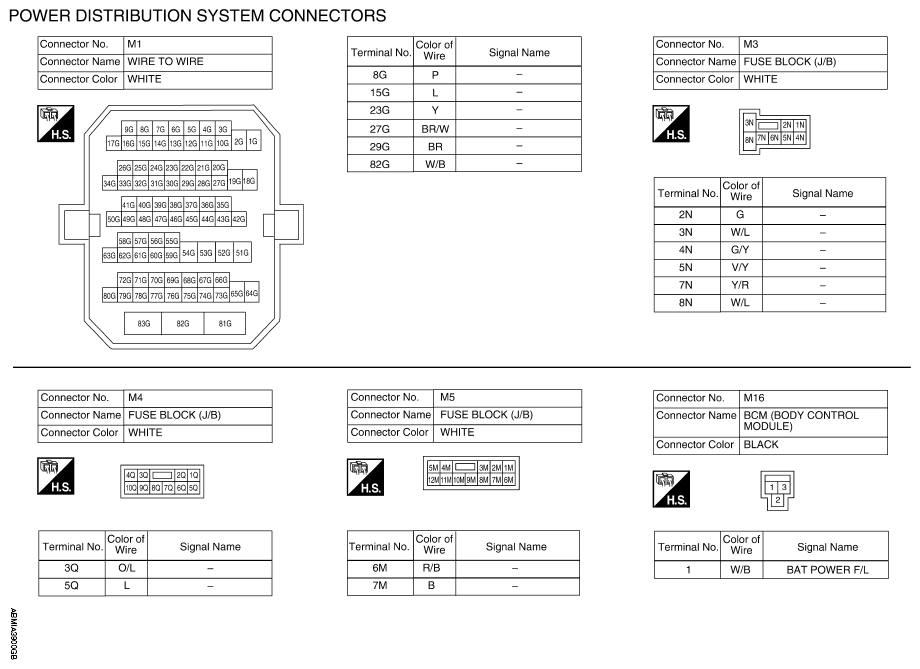

Fig 1: Power Distribution System Connector End View (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

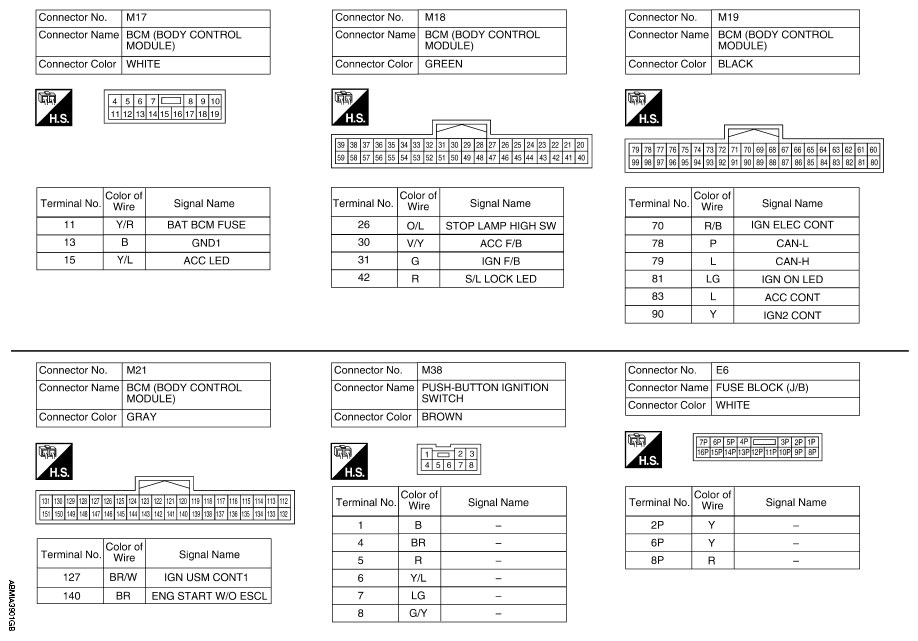

Fig 2: Power Distribution System Connector End View (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

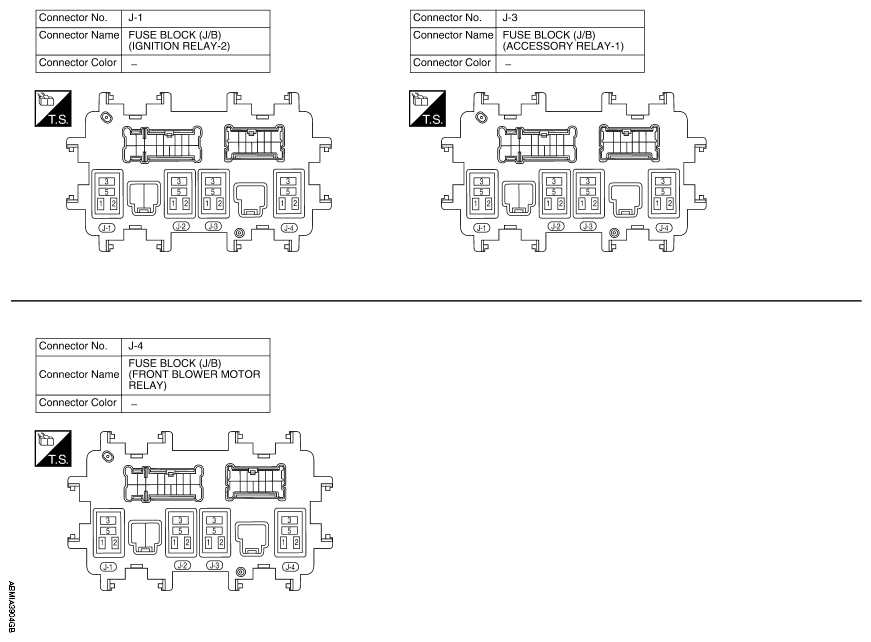

Fig 3: Power Distribution System Connector End View (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

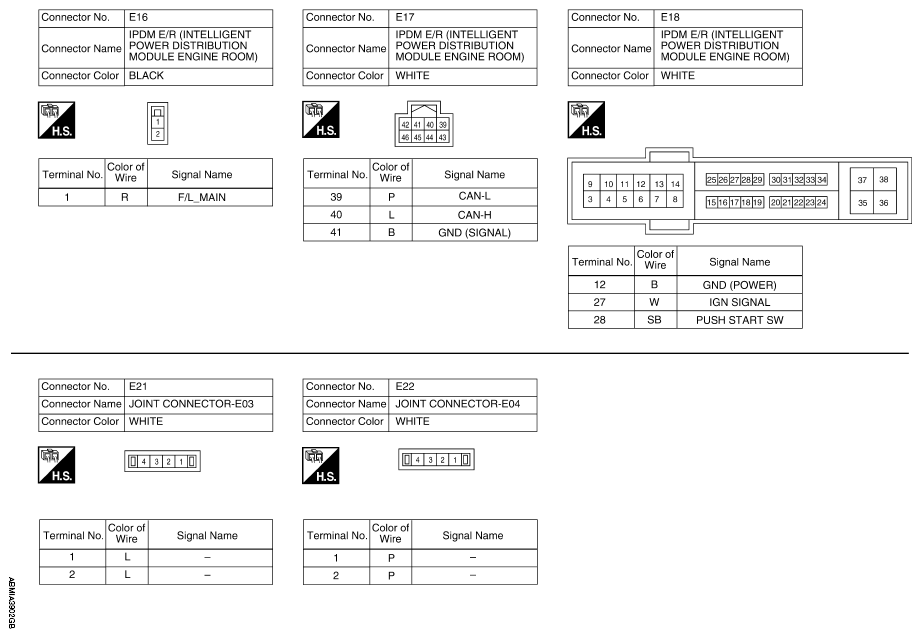

Fig 4: Power Distribution System Connector End View (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Power Distribution System Connector End View (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
