REMOTE KEYLESS ENTRY FUNCTION: Component Parts Location

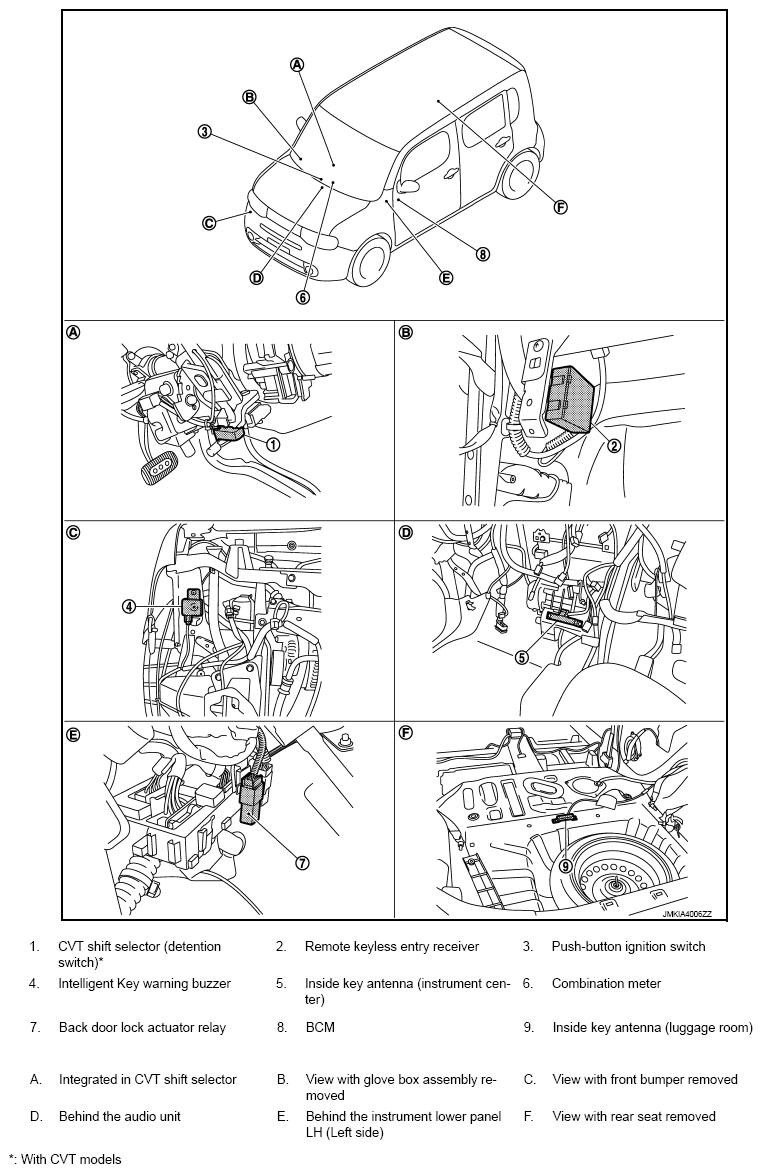

Fig 1: Identifying Remote Keyless Entry Function Components (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

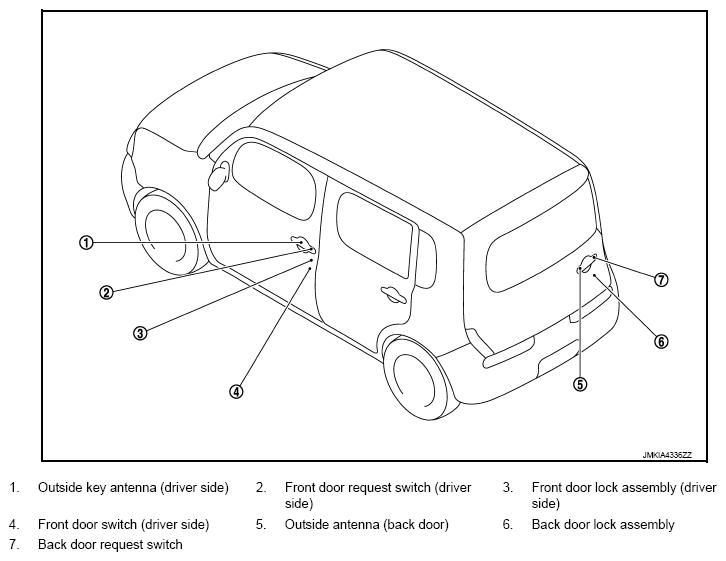

Fig 2: Identifying Remote Keyless Entry Function Components (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
