System Diagram

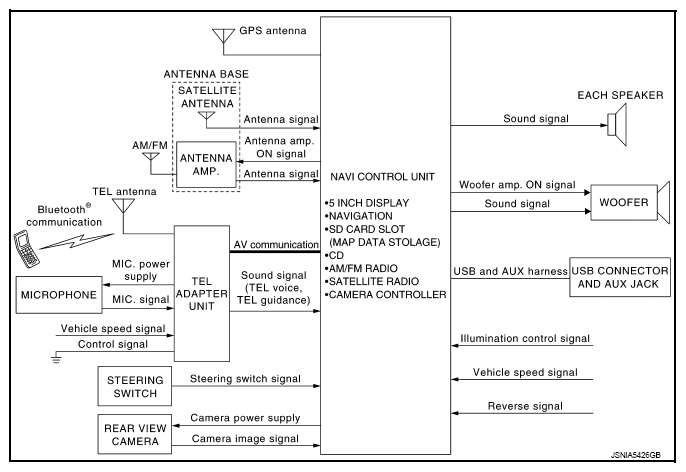

Fig 1: Audio System (With Navigation) System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.
Fig 2: Satellite And Radio Antenna System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
