Component Function Check

With GST

1. Start engine and warm it up to normal operating temperature.
2. Select Service $01 with GST.
3. Check the mass air flow sensor signal with Service $01.
4. Check for linear mass air flow sensor signal value rise in response to increases to about 4, 000 RPM in engine speed.

   Is the inspection result normal?

   YES: INSPECTION END

   NO: Go to "DIAGNOSIS PROCEDURE ".

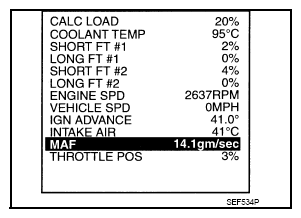

   Fig 1: Identifying Linear Mass Air Flow Sensor Signal Value

   Courtesy of NISSAN NORTH AMERICA, INC.
