Operation Flow: Notes

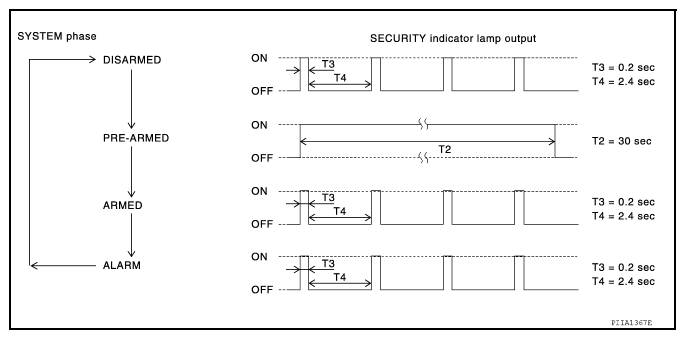

Fig 1: Vehicle Security System Blinking Pattern
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
