Assembly (M/T Models)

  1. Install clevis pin and shift collar to L-H shift fork after assembling them.
    CAUTION: Use caution when installing L-H shift fork, clevis pin or shift collar.
  2. Install clevis pin and shift collar to 2-4 shift bracket after assembling them.
    CAUTION: Use caution when installing 2-4 shift bracket.
  3. Install the fork guide collar and 2-4 shift fork spring to the 2-4 shift fork, and then secure it with the retaining ring.
    CAUTION:
    • Do not reuse retaining ring.
    • Be careful with orientation.

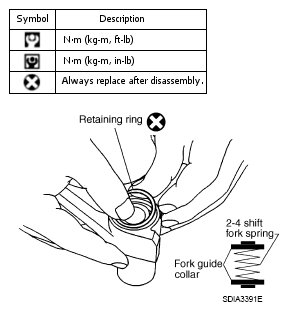

    Fig 1: Installing Fork Guide Collar And 2-4 Shift Fork Spring
    G06592247Courtesy of NISSAN NORTH AMERICA, INC.
