System - Basic Engine Control System

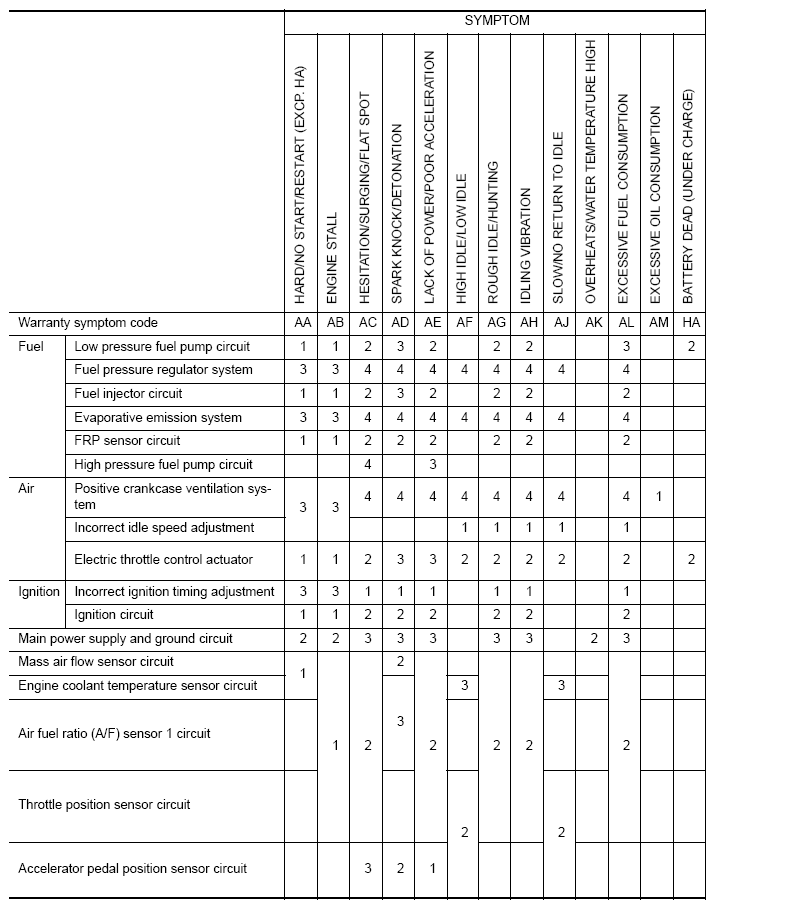

Fig 1: Basic Engine Control System Symptoms Chart (1 Of 2)
G08690424Courtesy of NISSAN NORTH AMERICA, INC.

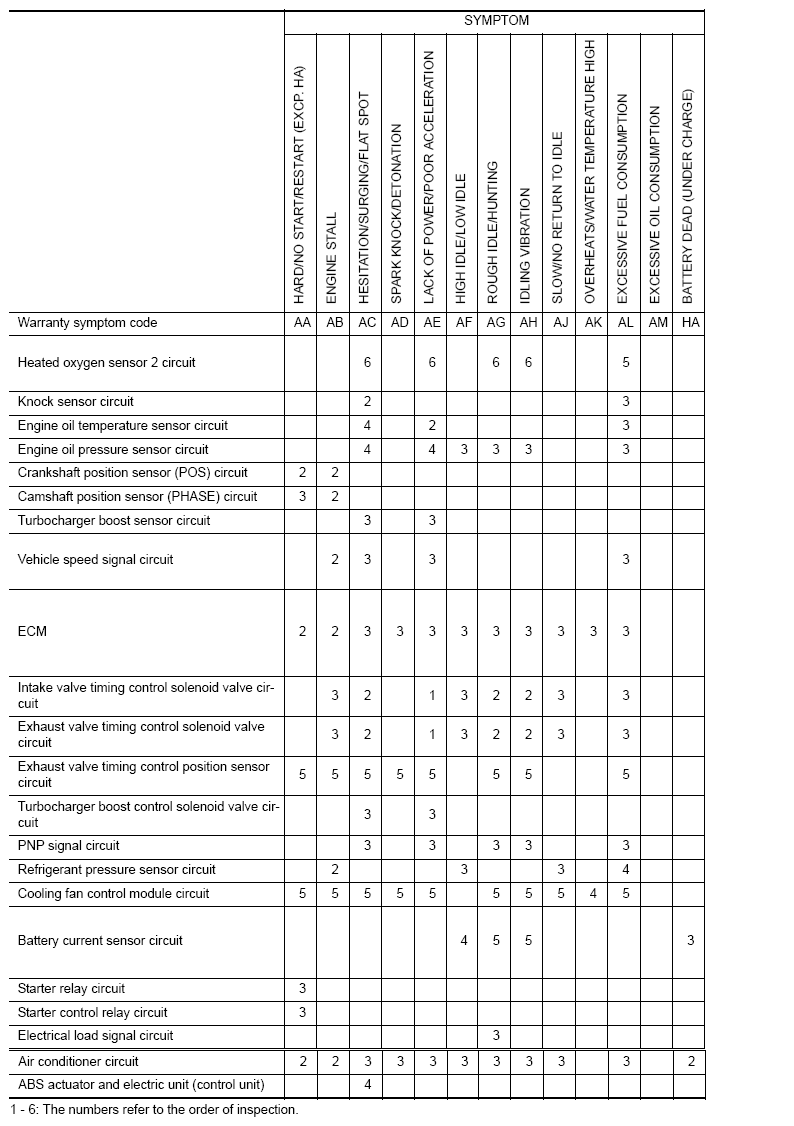

Fig 2: Basic Engine Control System Symptoms Chart (2 Of 2)
G08690425Courtesy of NISSAN NORTH AMERICA, INC.
