Ignition Timing: Inspection

CHECK IGNITION TIMING
1. Attach timing light to the ignition coil No. 1 harness.
2. Check ignition timing.

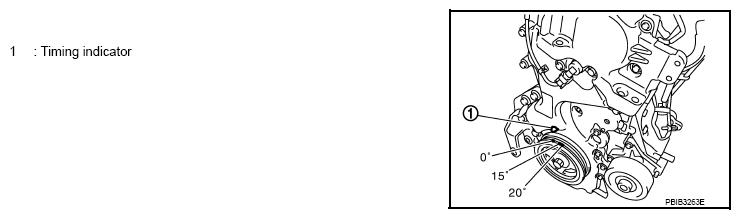

  Fig 1: Identifying Timing Indicator And Timing Marks
  Courtesy of NISSAN NORTH AMERICA, INC.

  : INSPECTION END
