Bluetooth® Control Unit (With Base Audio System) Connector End View (B126)

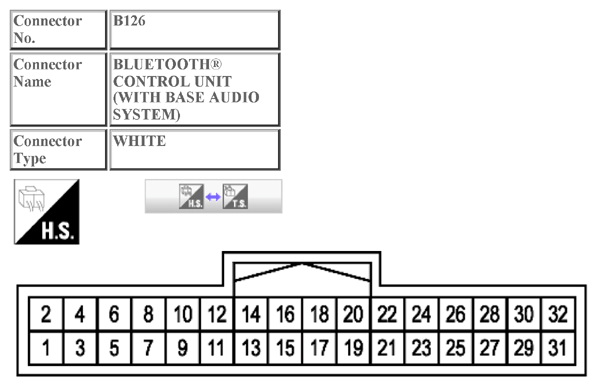

Fig 1: Bluetooth® Control Unit (With Base Audio System) Connector End View (B126)
G10419967Courtesy of NISSAN NORTH AMERICA, INC.
