Component Parts Location

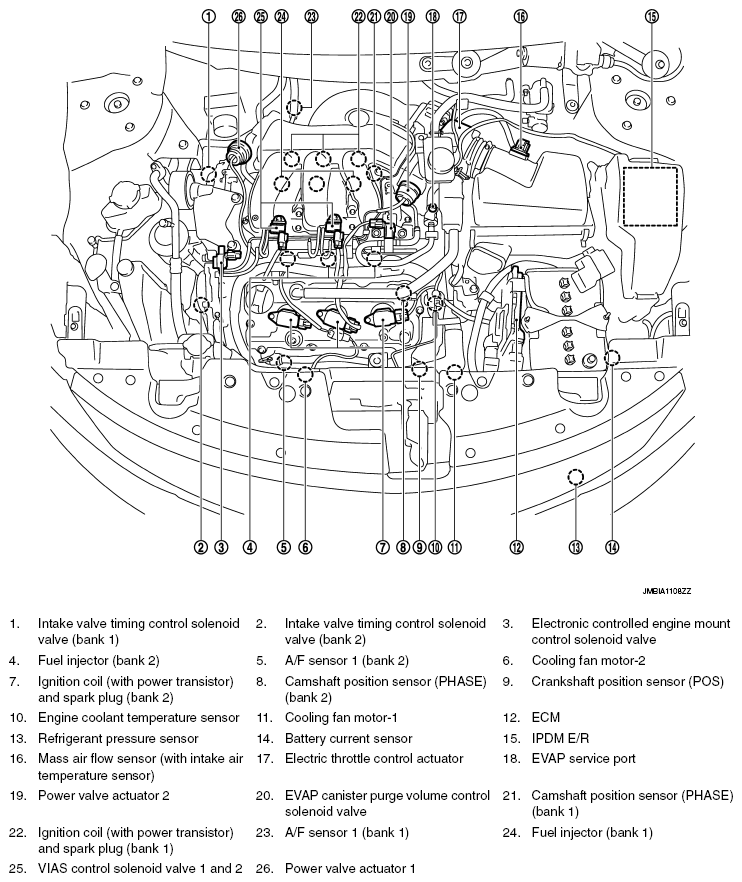

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 14)
G08955210Courtesy of NISSAN NORTH AMERICA, INC.

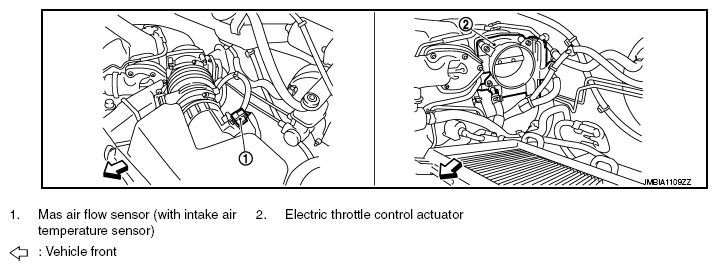

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 14)
G08955211Courtesy of NISSAN NORTH AMERICA, INC.

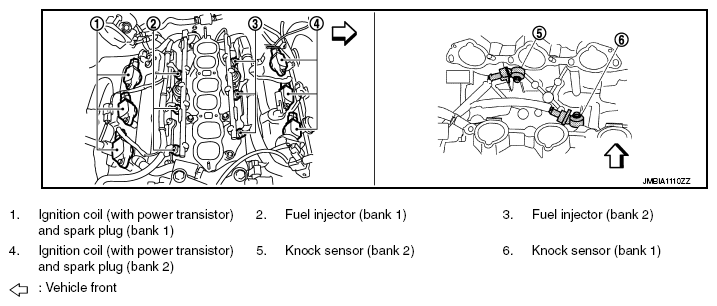

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 14)
G08955212Courtesy of NISSAN NORTH AMERICA, INC.

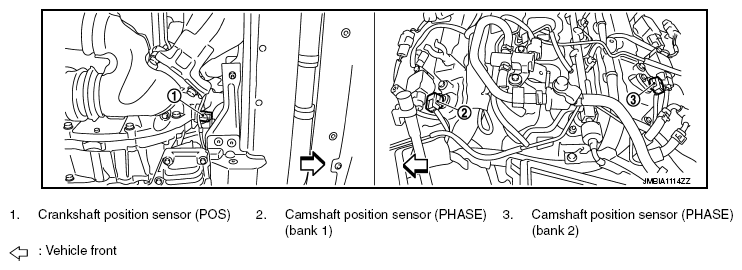

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 14)
G08955213Courtesy of NISSAN NORTH AMERICA, INC.

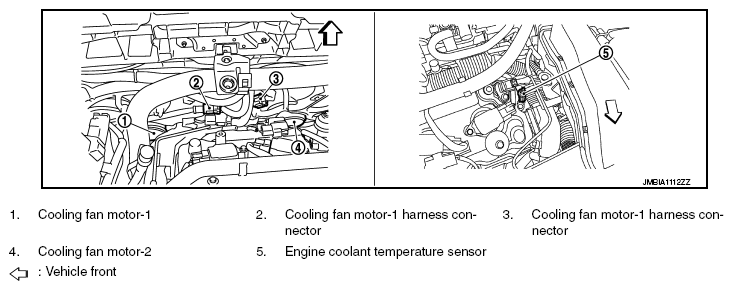

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 14)
G08955214Courtesy of NISSAN NORTH AMERICA, INC.

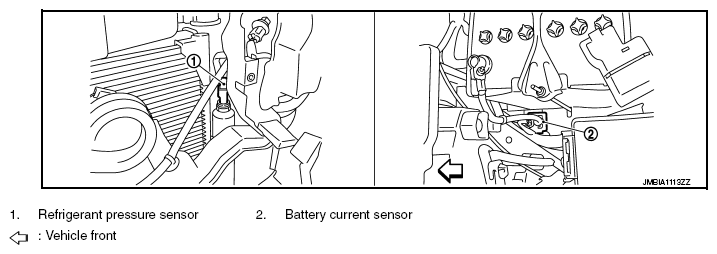

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 14)
G08955215Courtesy of NISSAN NORTH AMERICA, INC.

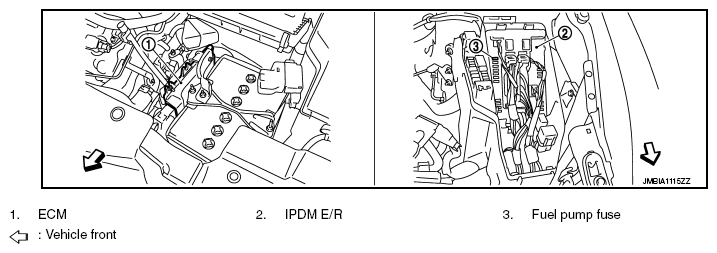

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 14)
G08955216Courtesy of NISSAN NORTH AMERICA, INC.

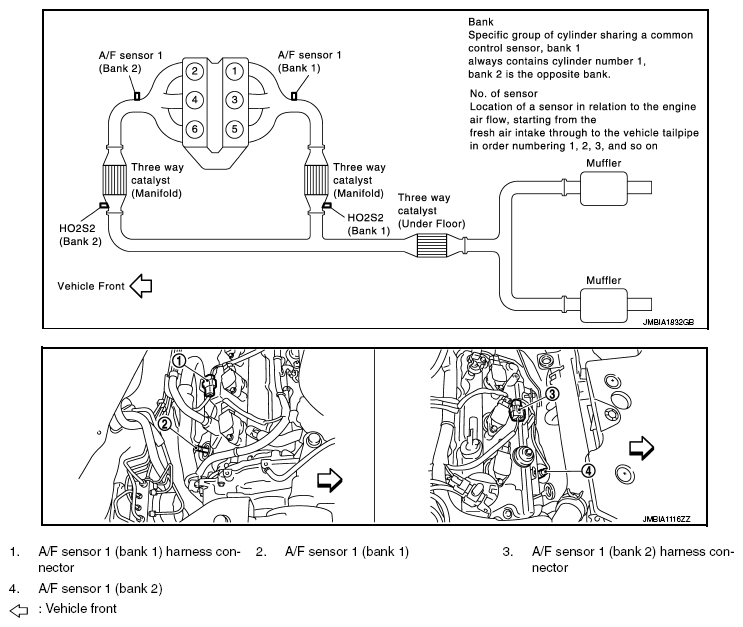

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 14)
G08955217Courtesy of NISSAN NORTH AMERICA, INC.

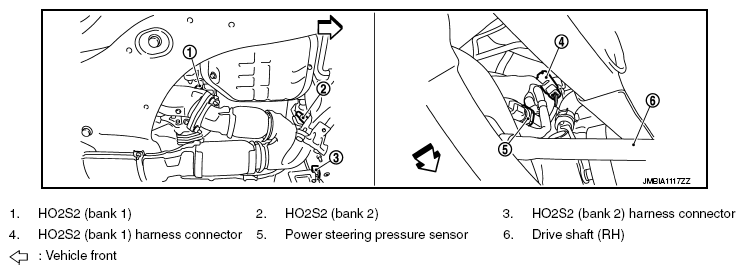

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 14)
G08955218Courtesy of NISSAN NORTH AMERICA, INC.

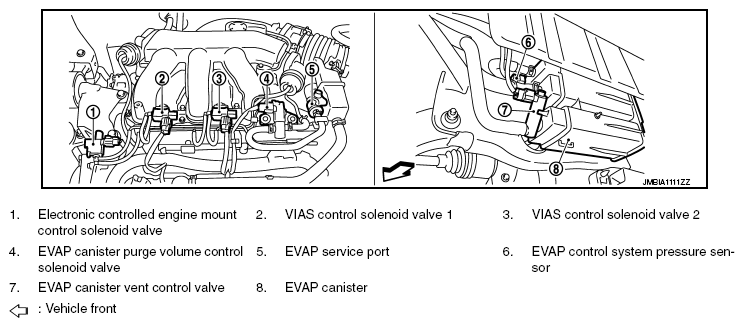

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 14)
G08955219Courtesy of NISSAN NORTH AMERICA, INC.

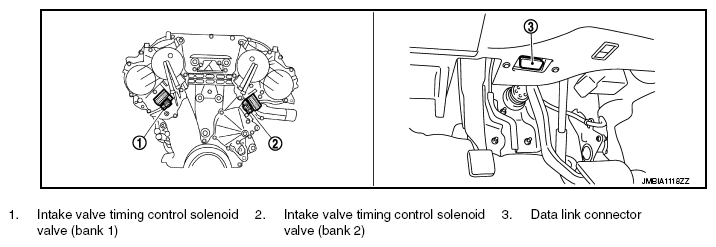

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 14)
G08955220Courtesy of NISSAN NORTH AMERICA, INC.

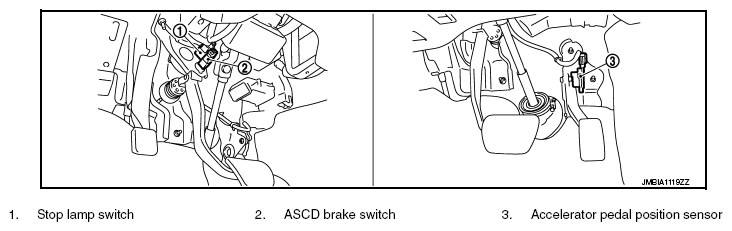

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 14)
G08955221Courtesy of NISSAN NORTH AMERICA, INC.

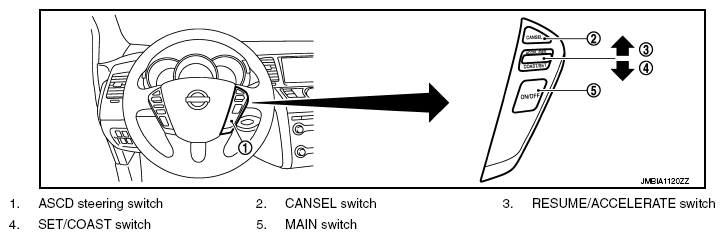

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 14)
G08955222Courtesy of NISSAN NORTH AMERICA, INC.

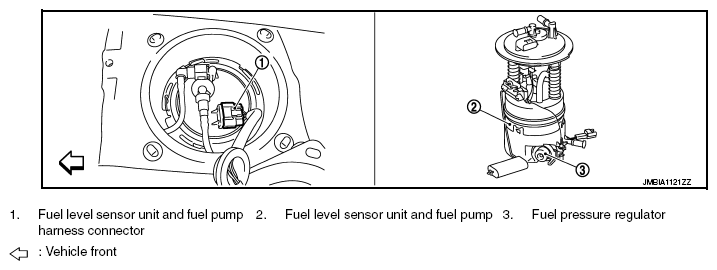

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 14)
G08955223Courtesy of NISSAN NORTH AMERICA, INC.
