Component Inspection

CHECK FUEL FILLER CAP
1. Turn ignition switch OFF.
2. Remove fuel filler cap. Refer to "EXPLODED VIEW ".
3. Wipe clean valve housing.

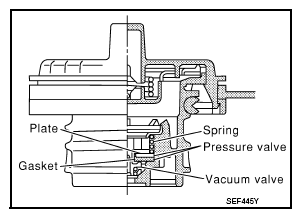

  Fig 1: Identifying Spring, Pressure Valve, Vacuum Valve, Plate And Gasket
  Courtesy of NISSAN NORTH AMERICA, INC.
4. Install fuel filler cap adapter (commercial service tool) to fuel filler cap.
5. Check valve opening pressure and vacuum.
  Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm ² , 2.22 - 2.90 psi)

  Vacuum: -6.0 to -3.3 kPa (-0.061 to -0.034 kg/cm ² , -0.87 to -0.48 psi)

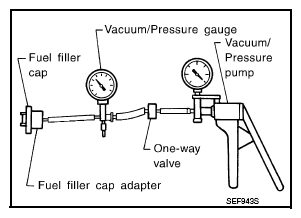

  Fig 2: Checking Valve Opening Pressure And Vacuum Using Vacuum/Pressure Gauge
  Courtesy of NISSAN NORTH AMERICA, INC.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: GO TO 2.
REPLACE FUEL FILLER CAP
Replace fuel filler cap. Refer to "EXPLODED VIEW ".

CAUTION: Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may illuminate.

: INSPECTION END
