Component Parts Location

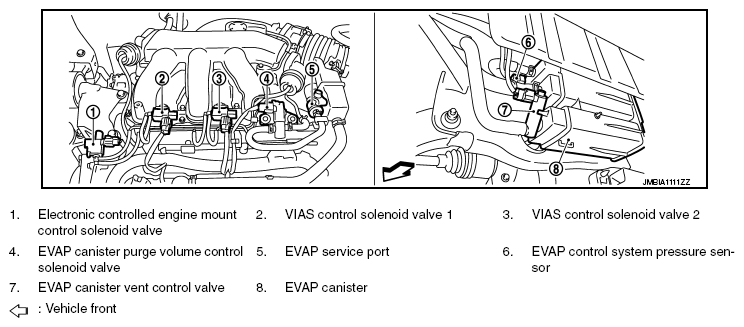

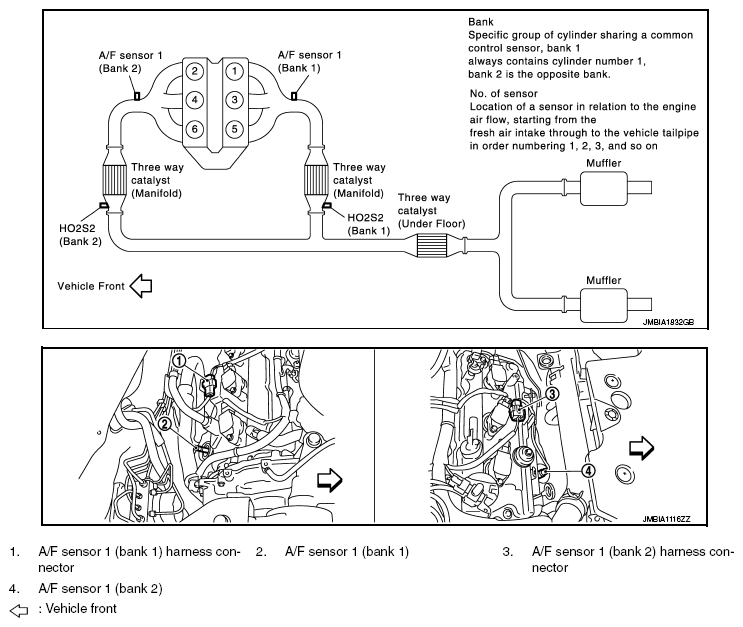

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

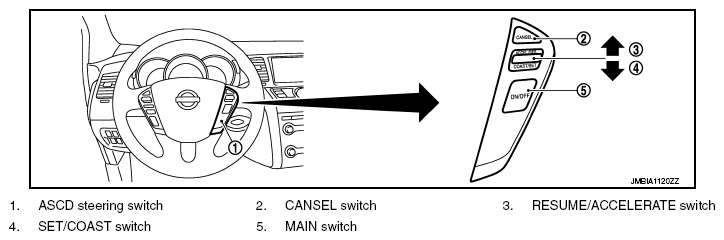

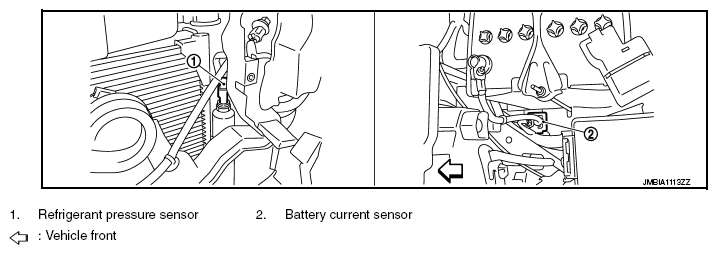

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

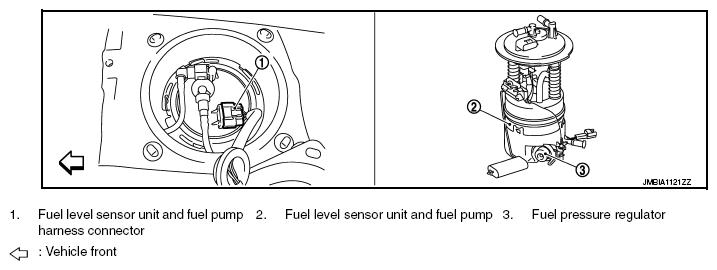

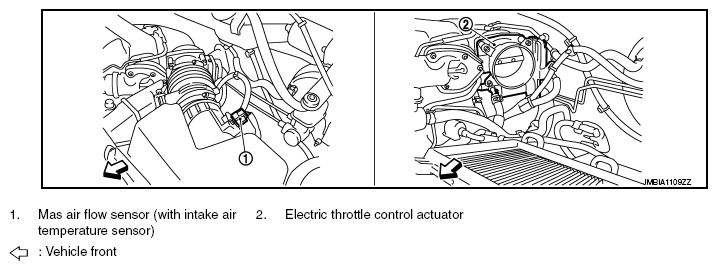

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

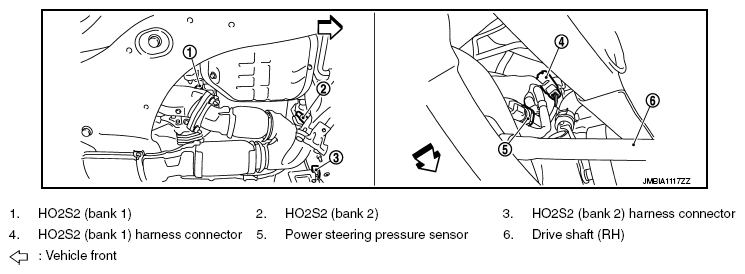

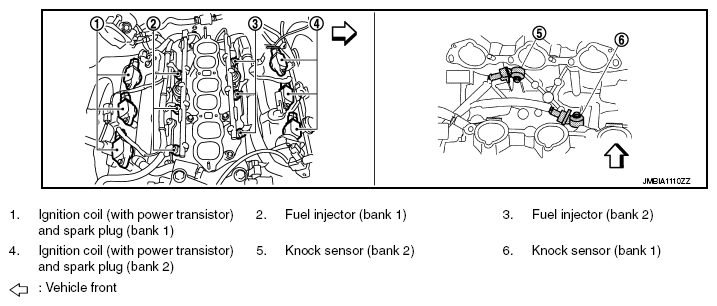

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

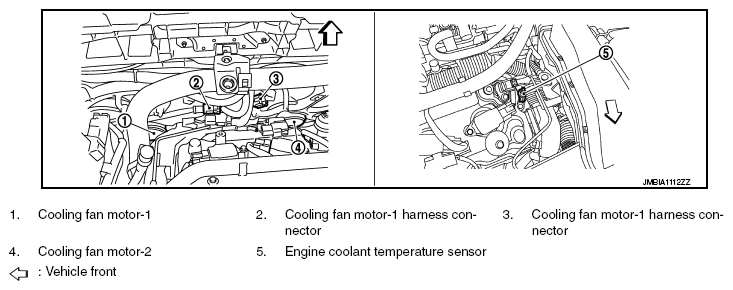

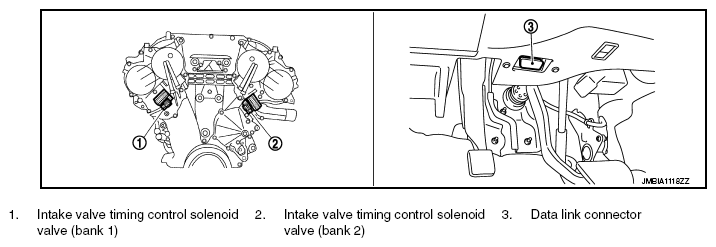

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

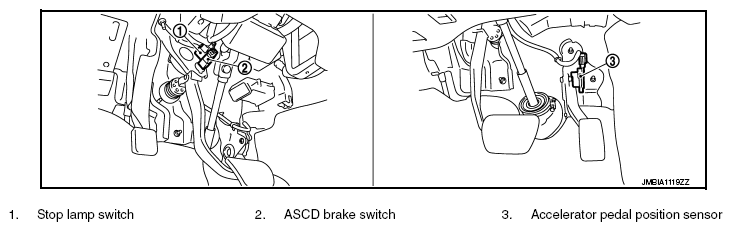

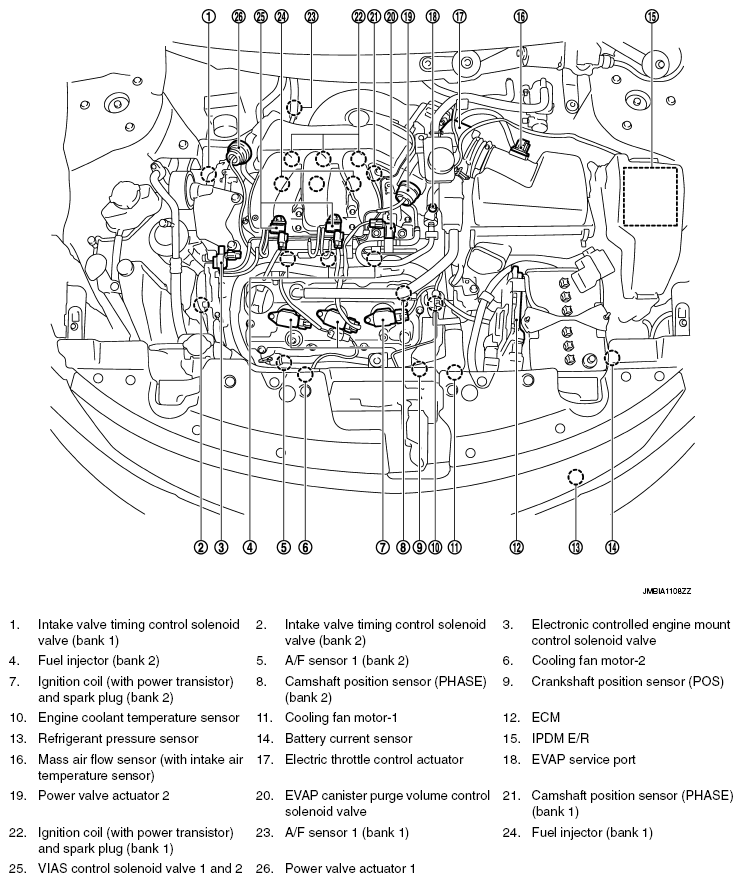

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

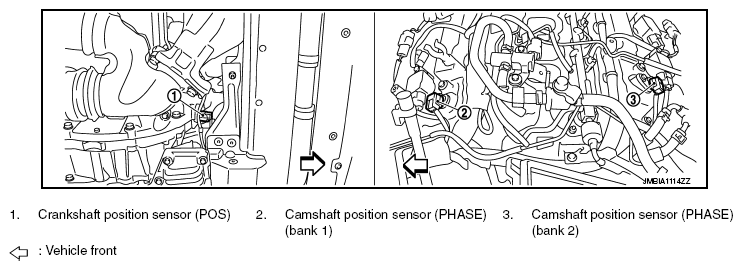

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

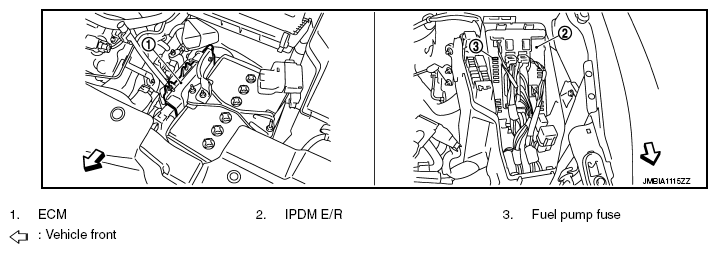

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.
