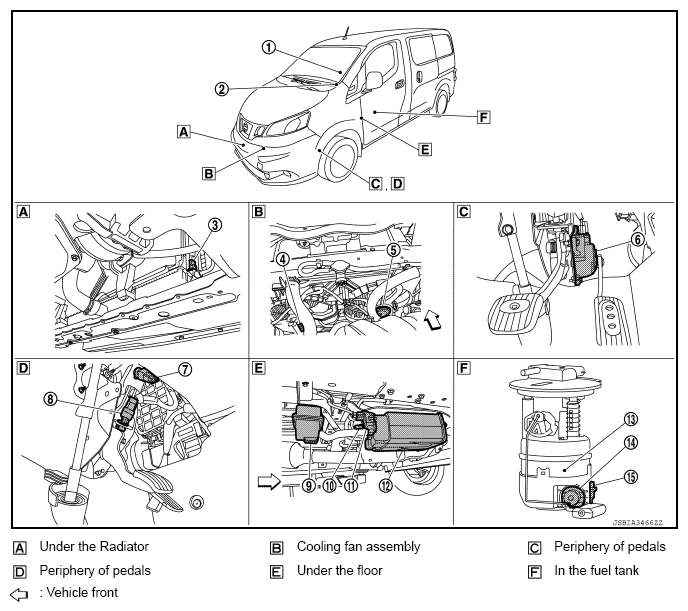

Body Compartment
| No. | Component | Function |
|---|---|---|
| (1) | ASCD steering switch | "ASCD STEERING SWITCH " |
| (2) | Combination meter | "COMPONENT DESCRIPTION " |
| (3) | Refrigerant pressure sensor | "REFRIGERANT PRESSURE SENSOR " |
| (4) | Cooling fan motor-1 | "COOLING FAN " |
| (5) | Cooling fan motor-2 | |
| (6) | Accelerator pedal position sensor | "ACCELERATOR PEDAL POSITION SENSOR " |
| (7) | Brake pedal position switch | "STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH " |
| (8) | Stop lamp switch | "STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH " |
| (9) | Drain filter | - |
| (10) | EVAP control system pressure sensor | "EVAP CONTROL SYSTEM PRESSURE SENSOR " |
| (11) | EVAP canister vent control valve | "EVAP CANISTER VENT CONTROL VALVE " |
| (12) | EVAP canister | EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the tank. |
| (13) | Fuel level sensor unit, fuel filter and fuel pump assembly (with fuel tank temperature sensor) | "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY " "FUEL TANK TEMPERATURE SENSOR " |
| (14) | Fuel pressure regulator | - |
| (15) | Fuel tank temperature sensor | "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY " "FUEL TANK TEMPERATURE SENSOR " |
