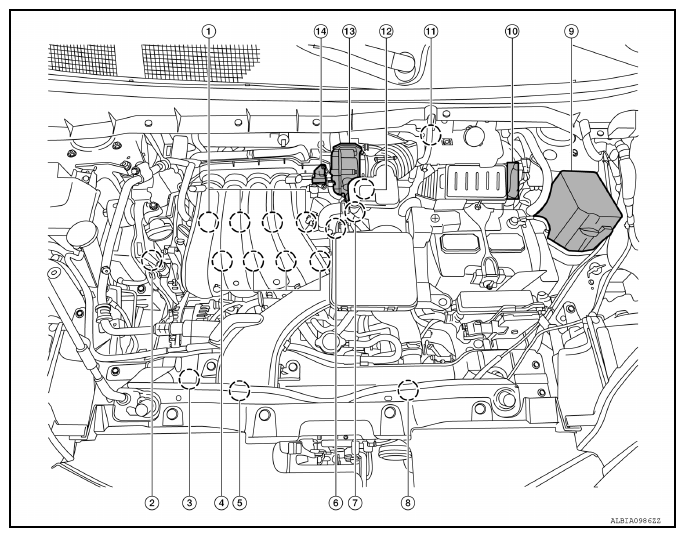

| (1) |
Ignition coil (with power transistor) |
"IGNITION COIL WITH POWER TRANSISTOR " |
| (2) |
Intake valve timing control solenoid valve |
"INTAKE VALVE TIMING CONTROL SOLENOID VALVE " |
| (3) |
Refrigerant pressure sensor |
"REFRIGERANT PRESSURE SENSOR " |
| (4) |
Fuel injector |
"FUEL INJECTOR " |
| (5) |
Cooling fan motor-2 |
"COOLING FAN " |
| (6) |
Camshaft position sensor (PHASE) |
"CAMSHAFT POSITION SENSOR (PHASE) " |
| (7) |
Engine coolant temperature sensor |
"ENGINE COOLANT TEMPERATURE SENSOR " |
| (8) |
Cooling fan motor-1 |
"COOLING FAN " |
| (9) |
IPDM E/R |
IPDM E/R control the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control.
|
| (10) |
ECM |
"ECM " |
| (11) |
Mass air flow sensor (with intake air temperature sensor) |
"MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) " |
| (12) |
EVAP service port |
EVAP service port is prepared in order to perform evaporative emission system leak check. |
| (13) |
Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
"ELECTRIC THROTTLE CONTROL ACTUATOR " |
| (14) |
EVAP canister purge volume control solenoid valve |
"EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE " |
