Disassembly and Assembly: Notes

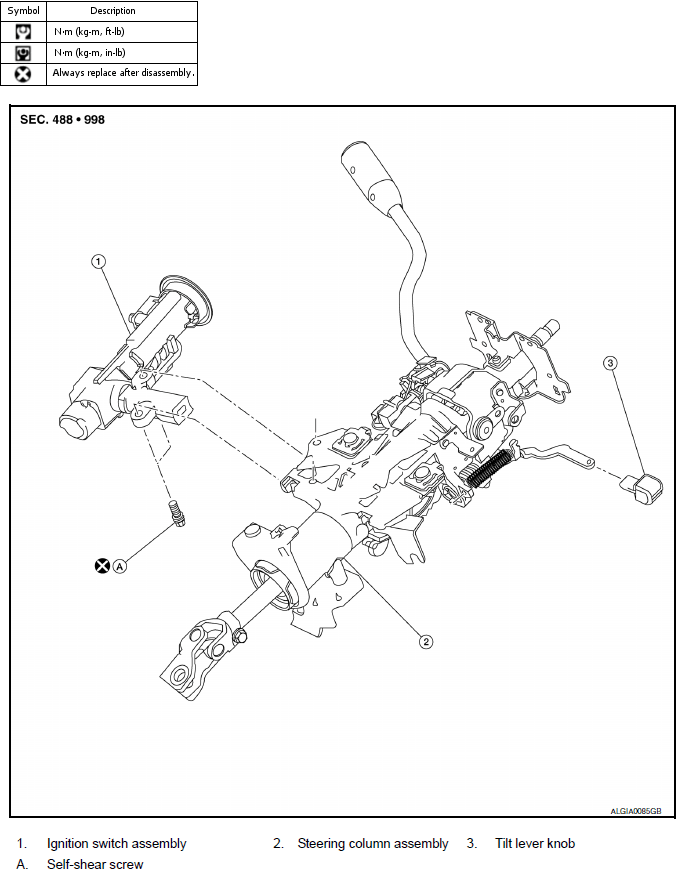

Fig 1: Identifying Ignition Switch Assembly, Steering Column Assembly And Tilt Lever Knob Self-Shear Screw
G09018188Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
  • Any time the ignition switch has been disconnected, removed or installed, the keys must be re-registered in the BCM. Refer to CONSULT operations IVIS/NVIS.
  • Use care when handling steering column assembly during removal and installation.
  • Care must be taken not to move power steering gear during removal of steering column assembly.
