Disassembly and Assembly: Disassembly

NOTE: Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to the terminals.

Disconnect the fuel level sensor unit harness connector (A) and the fuel tank temperature sensor harness connector (C). Press the tabs on the terminals to release the locking tabs.

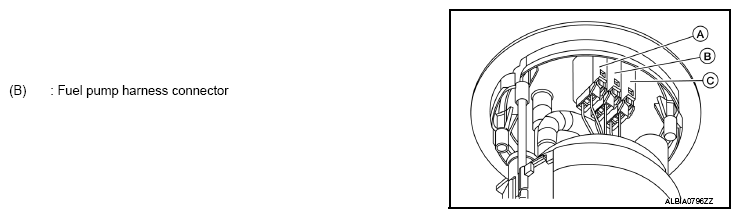

Fig 1: Identifying Fuel Pump, Fuel Level Sensor And Fuel Tank Temperature Sensor Harness Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Release the two clips and remove the fuel tank temperature sensor from the pump assembly.

Fig 2: Removing Fuel Tank Temperature Sensor From Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Release the tab (A) and slide the fuel level sensor unit and float arm assembly (B) up to remove.

Fig 3: Removing Fuel Level Sensor Unit And Float Arm Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
