DISPLAY AUDIO SYSTEM: Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DISPLAY AUDIO SYSTEM: Circuit Diagram

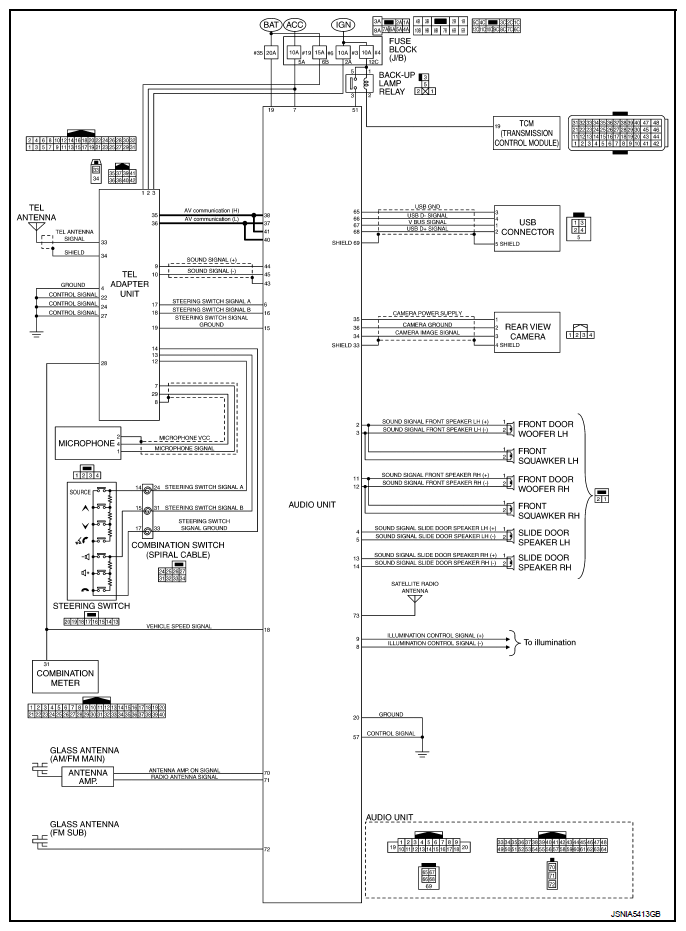

Fig 1: Display Audio System Wiring Diagrams With Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
