MULTI AV SYSTEM: Circuit Diagram

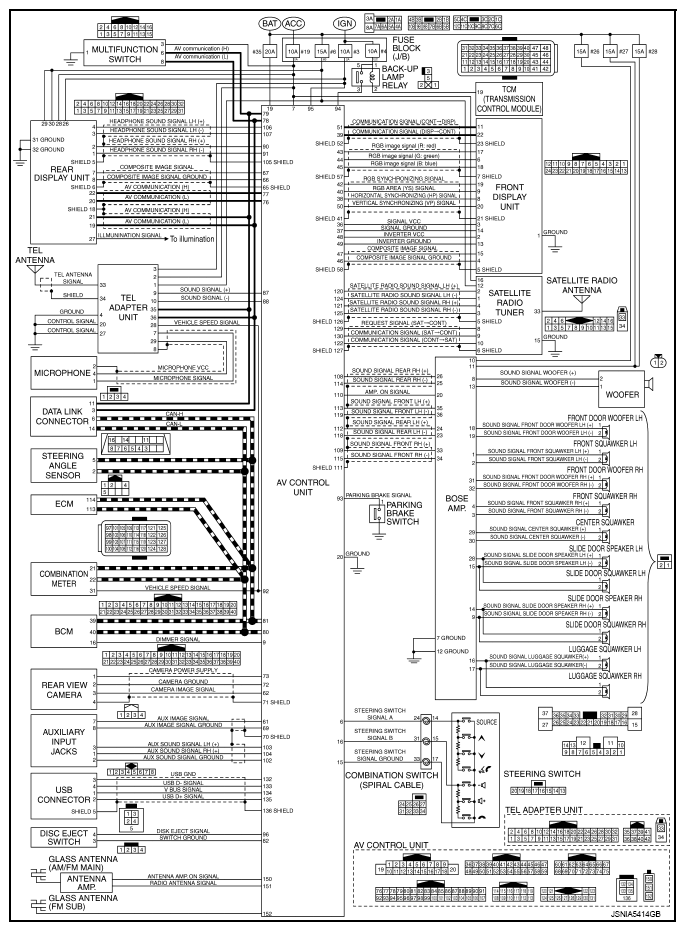

Fig 1: Multi AV System Wiring Diagrams Combined With Connector End Views
