INTELLIGENT KEY SYSTEM: Circuit Diagram

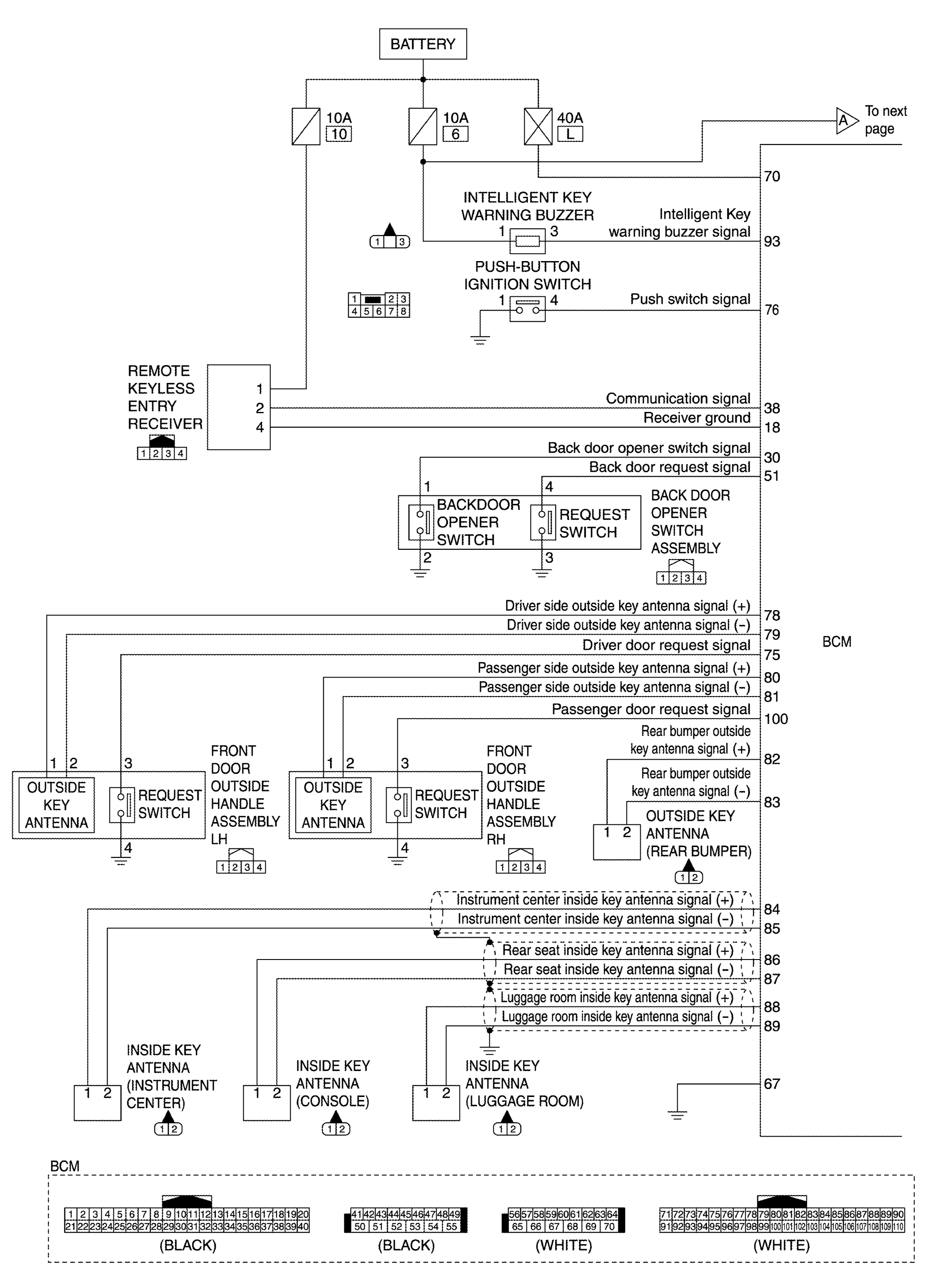

Fig 1: Intelligent Key System Wiring Diagrams With Connector End Views (1 Of 2)
G07051663Courtesy of NISSAN NORTH AMERICA, INC.

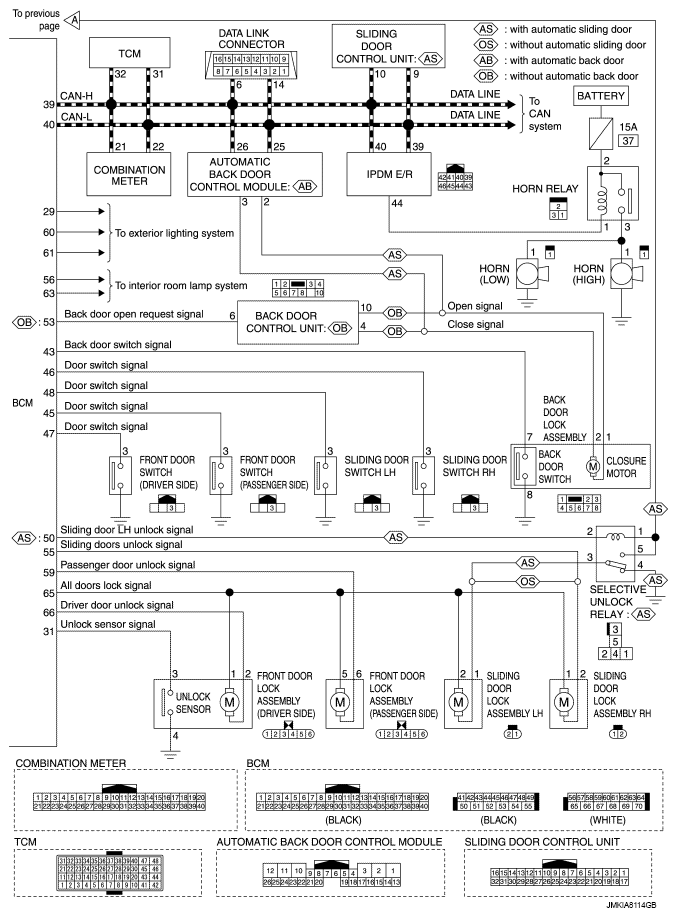

Fig 2: Intelligent Key System Wiring Diagrams With Connector End Views (2 Of 2)
G07051664Courtesy of NISSAN NORTH AMERICA, INC.
