AUDIO SYSTEM: Circuit Diagram

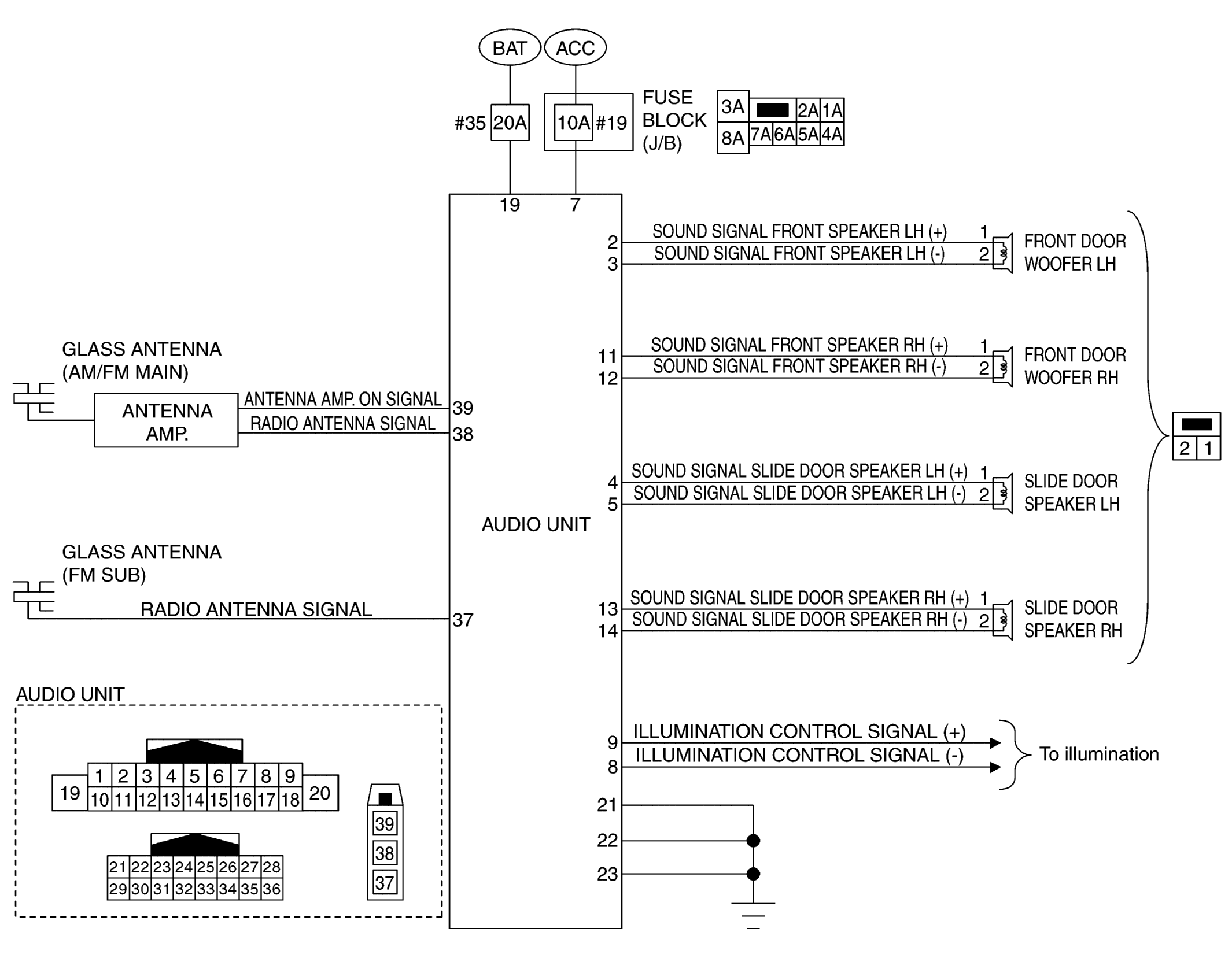

Fig 1: Audio System Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
