Electronic Controlled Engine Mount Line Drawing

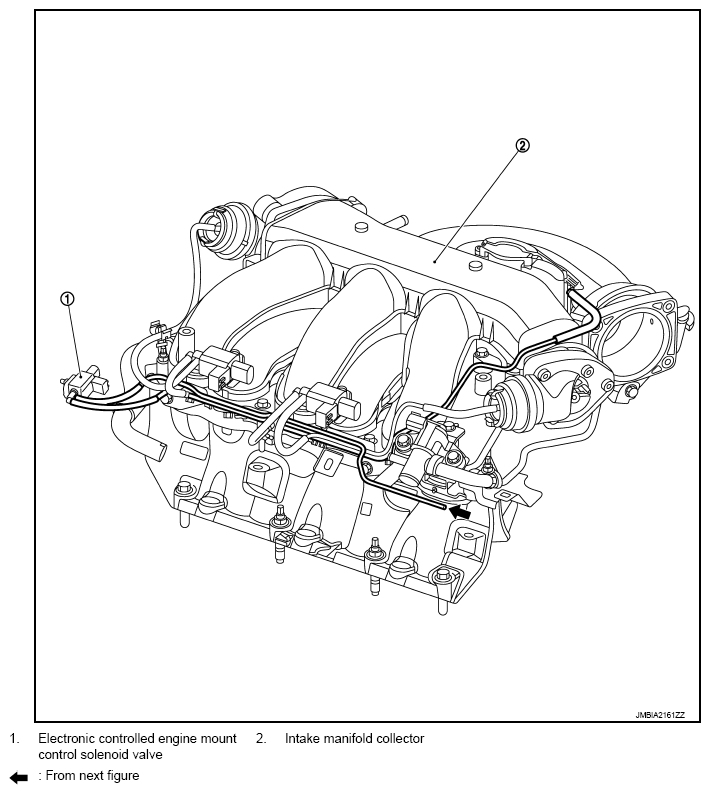

Fig 1: Identifying Electronic Controlled Engine Mount Control Solenoid Valve And Intake Manifold Collector
G08959657Courtesy of NISSAN NORTH AMERICA, INC.

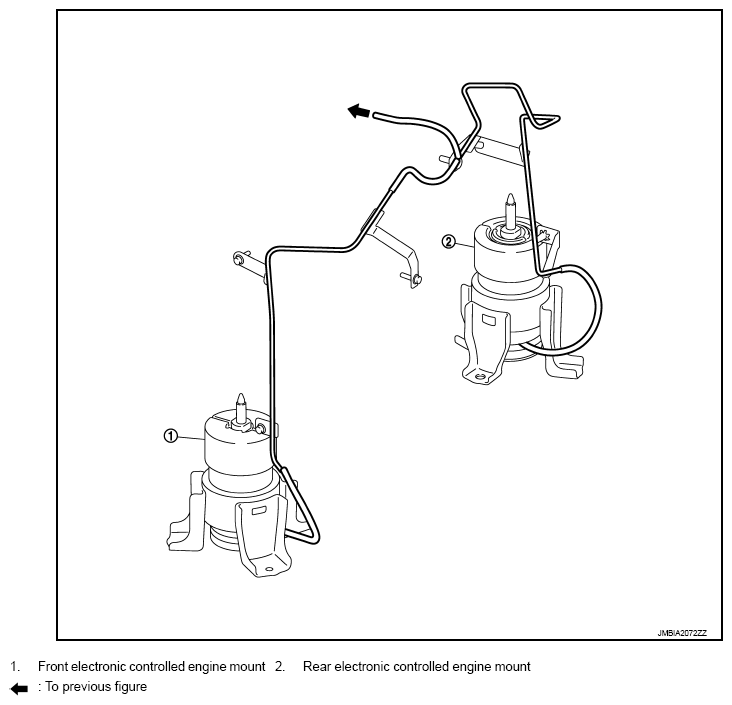

Fig 2: Identifying Front And Rear Electronic Controlled Engine Mount
G08959658Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose.
