Switch And Their Control Function

With ACCS (Advanced Climate Control System)

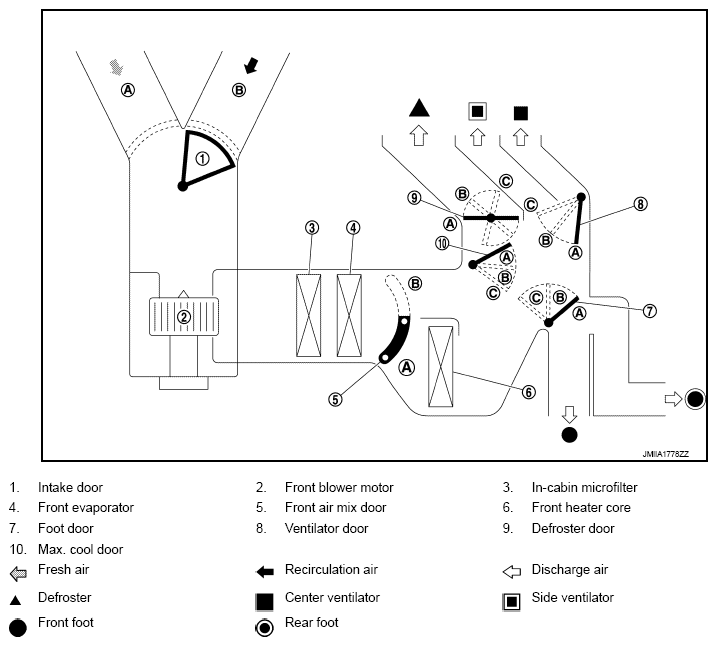

Fig 1: Switch And Control Function Diagram With ACCS

Courtesy of NISSAN NORTH AMERICA, INC.

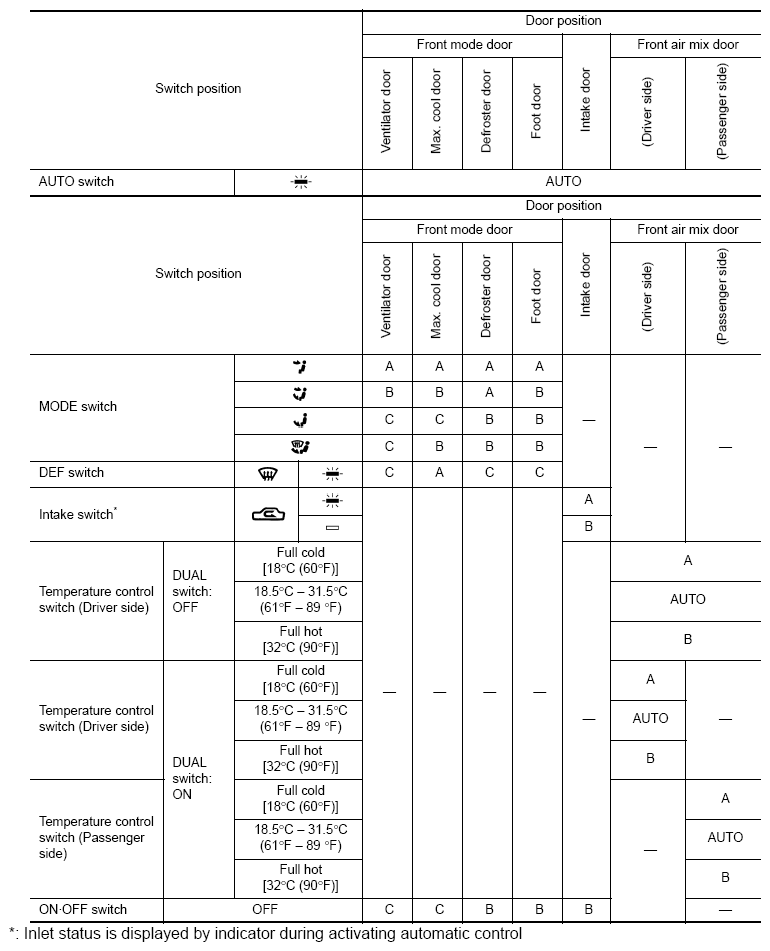

Fig 2: Switch And Control Function Chart With ACCS

Courtesy of NISSAN NORTH AMERICA, INC.

*: Inlet status is displayed by indicator during activating automatic control

Without ACCS (Advanced Climate Control System)

Fig 3: Switch And Control Function Diagram With ACCS

Courtesy of NISSAN NORTH AMERICA, INC.

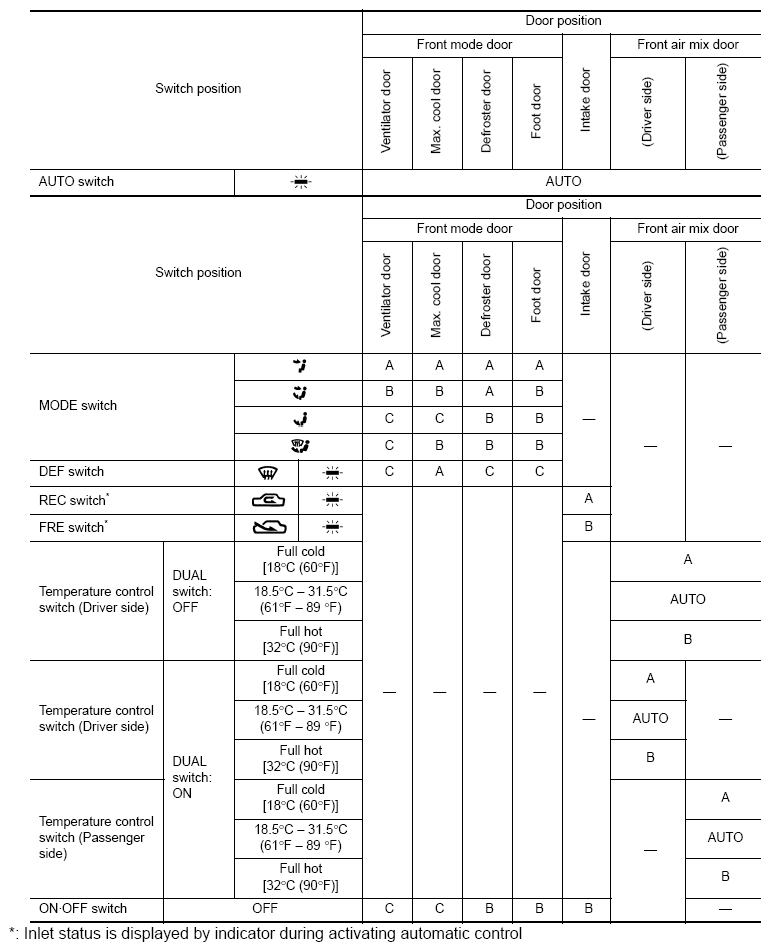

Fig 4: Switch And Control Function Chart Without ACCS

Courtesy of NISSAN NORTH AMERICA, INC.

*: Inlet status is displayed by indicator during activating automatic control
