Automatic Back Door Control Module Connector End View (B8)

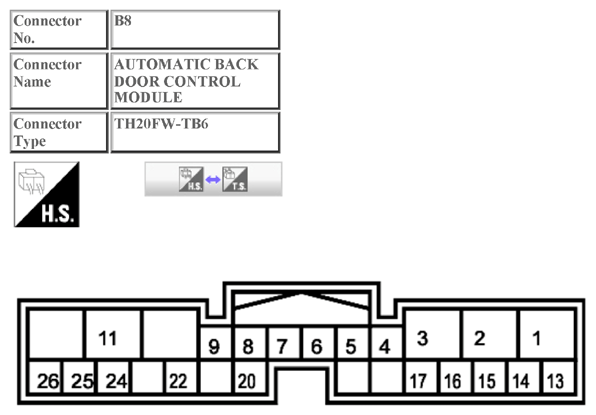

Fig 1: Automatic Back Door Control Module Connector End View (B8)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
