Component Inspection

1. Turn ignition switch OFF.
2. Remove fuel filler cap. Refer to "2WD: EXPLODED VIEW " (2WD models) or "AWD: EXPLODED VIEW " (AWD models).
3. Wipe clean valve housing.

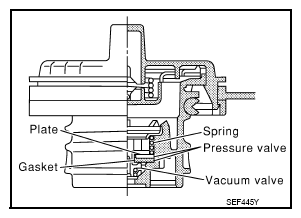

   Fig 1: Sectional View Of Fuel Filler Cap

   Courtesy of NISSAN NORTH AMERICA, INC.
4. Install fuel filler cap adapter (commercial service tool) to fuel filler cap.
5. Check valve opening pressure and vacuum.

   Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm ²  , 2.22 - 2.90 psi)

   Vacuum: -6.0 to -3.3 kPa (-0.061 to -0.034 kg/cm ²  , -0.87 to -0.48 psi)

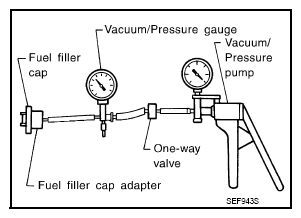

   Fig 2: Checking Fuel Filler Cap Using Vacuum/Pressure Pump And Adapter

   Courtesy of NISSAN NORTH AMERICA, INC.

   Is the inspection result normal?

   YES: INSPECTION END

   NO: GO TO 2.

Replace fuel filler cap. Refer to "2WD: EXPLODED VIEW " (2WD models) or "AWD: EXPLODED VIEW " (AWD models).

: INSPECTION END
