Component Function Check

CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (1) with two fingers.
  - ←: Vehicle front
    Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.
  Is the inspection result normal?

  YES: INSPECTION END

  NO: "DIAGNOSIS PROCEDURE ".

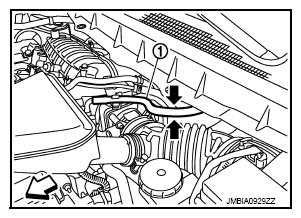

  Fig 1: Pinching Fuel Feed Hose
  Courtesy of NISSAN NORTH AMERICA, INC.
