Exploded View

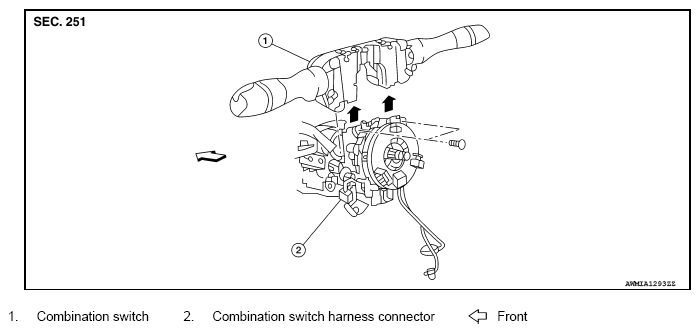

Fig 1: Identifying Combination Switch And Harness Connector
G08991641Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Shown with the steering wheel removed for clarity only.
