Communication Diagnosis

Turn the ignition ON.
Turn the audio system OFF.
While pressing the preset 6 button, turn the volume control dial clockwise or counterclockwise 30 clicks or more.

Fig 1: Turning Volume Control Dial Clockwise/Counterclockwise
Courtesy of NISSAN NORTH AMERICA, INC.
Initially, the communication diagnosis mode is displayed.

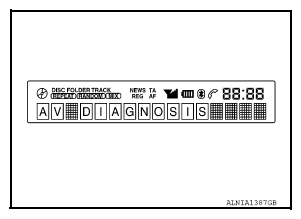

Fig 2: Display - Communication Diagnosis Mode On Screen
Courtesy of NISSAN NORTH AMERICA, INC.
To exit communication diagnosis, turn the ignition OFF.
