Method Of Starting

  1. Turn the ignition ON.
  2. Turn the audio system OFF.
  3. While pressing the MENU button, turn the TUNE-SCROLL dial counterclockwise 3 or more clicks, then clockwise 3 or more clicks, then counterclockwise 3 or more clicks. Shifting from current screen to previous screen is performed by pressing BACK button.

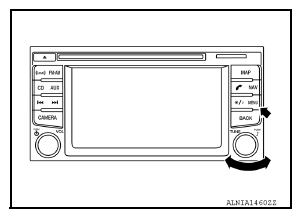

    Fig 1: Turning AV Control Unit Scroll Dial
    G08992215Courtesy of NISSAN NORTH AMERICA, INC.
  4. The trouble diagnosis initial screen is displayed, and Version, User Config, Radio, System State or Self Test can be selected.

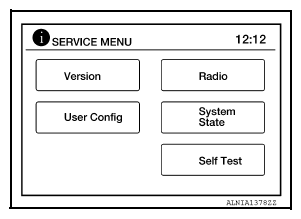

    Fig 2: Display - Trouble Diagnosis Initial Screen
    G08992216Courtesy of NISSAN NORTH AMERICA, INC.
