System Diagram

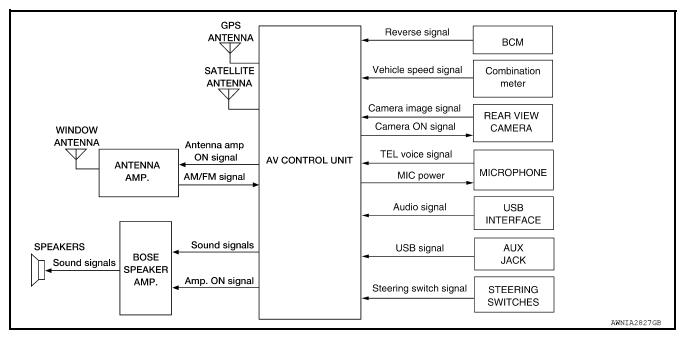

Fig 1: Navigation - System Diagram (With Bose)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
