Exploded View

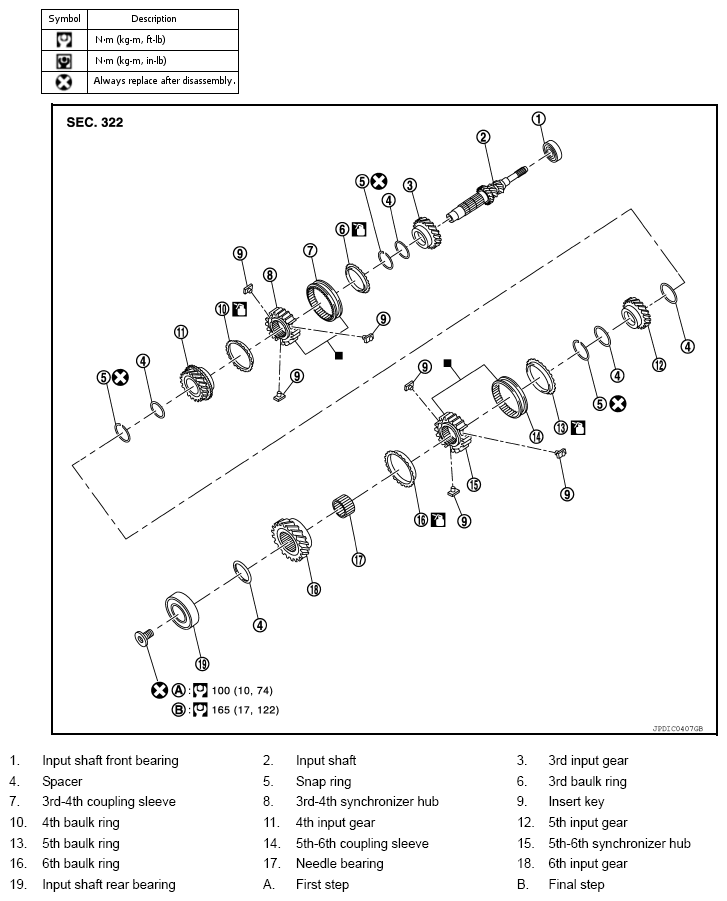

Fig 1: Exploded View Of Input Shaft And Gear With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
