Case And Housing

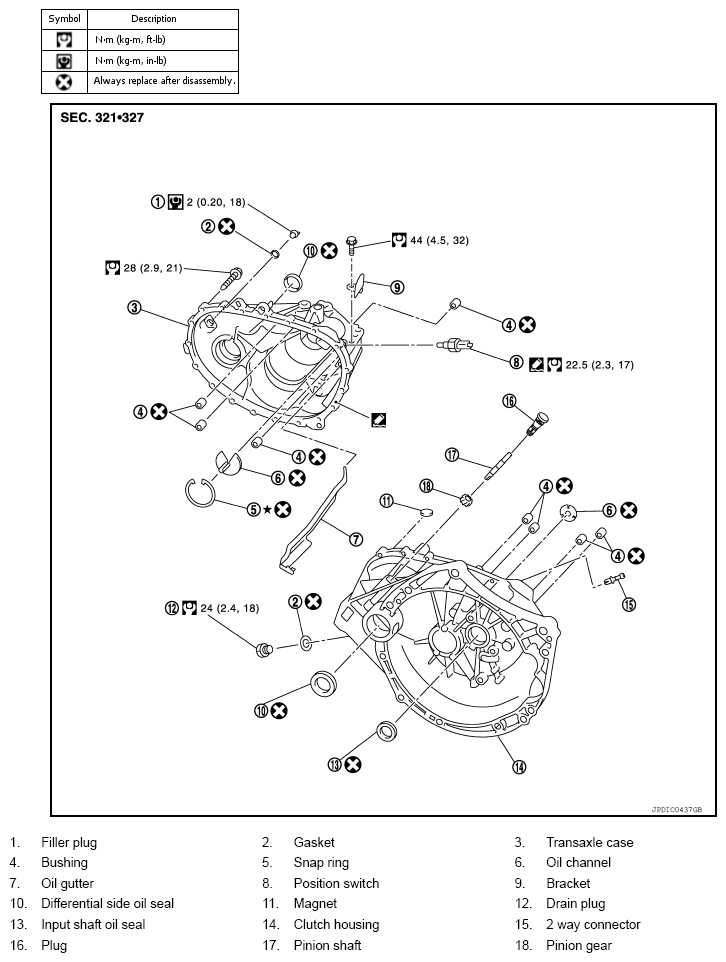

Fig 1: Exploded View Of Transaxle Assembly (Case And Housing) With Torque Specifications
G08989548Courtesy of NISSAN NORTH AMERICA, INC.
