DRIVER SIDE: Exploded View

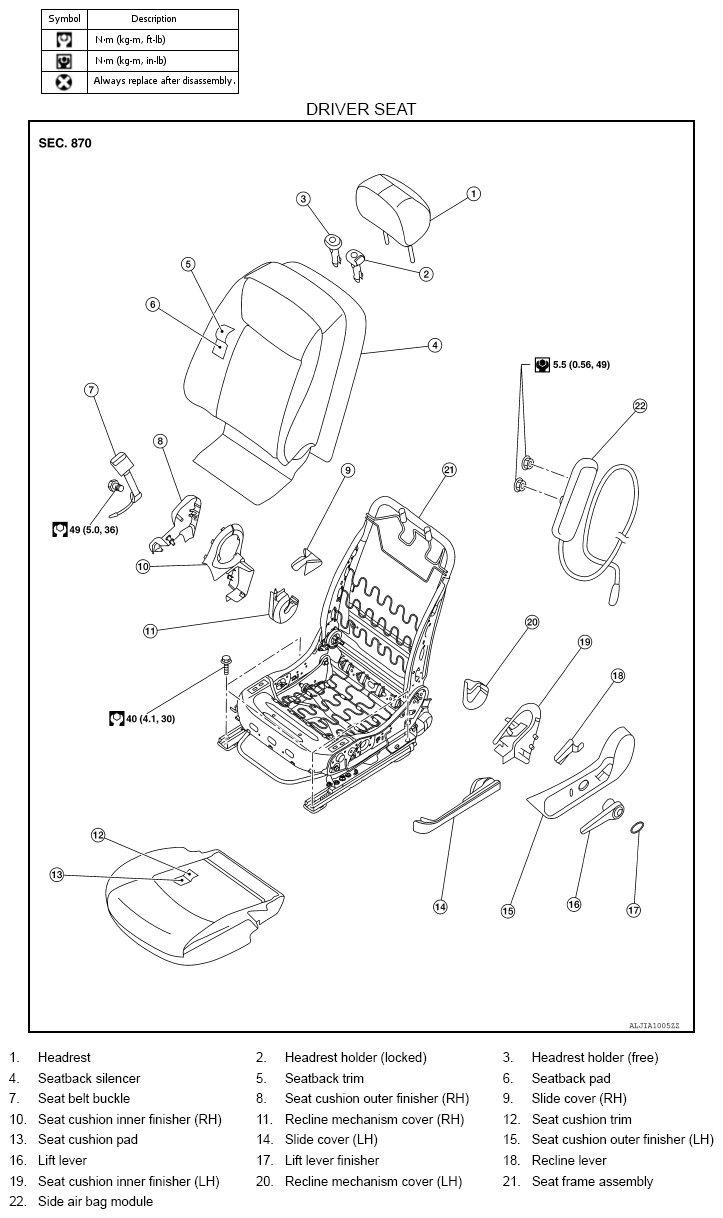

Fig 1: Exploded View Of Front Seat (DRIVER SEAT) With Torque Specifications
G08990656Courtesy of NISSAN NORTH AMERICA, INC.
